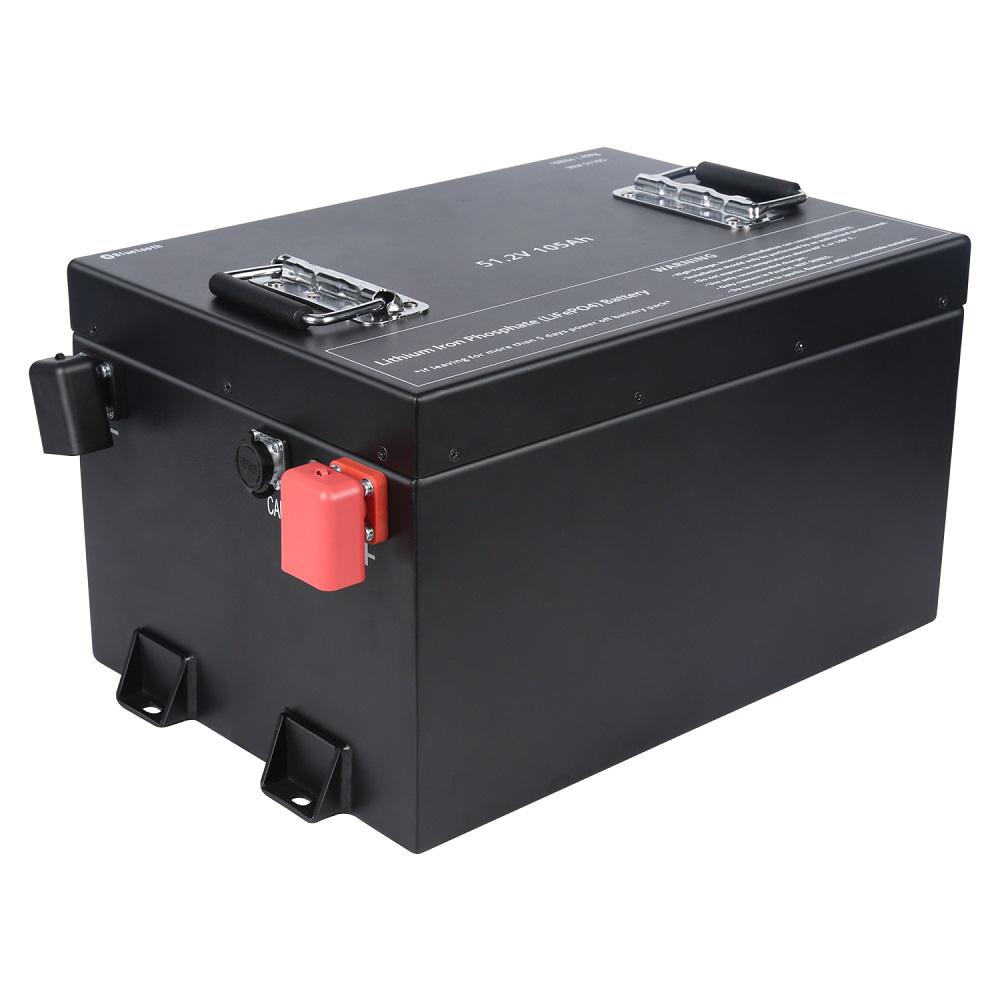

51.2V 150ah lithium iron phosphate lifepo4 golf cart battery

Product Details:
Place of Origin: China
Brand Name: Haixin
Certification: CE
Model Number: 16S1P
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
Nominal Capacity: 150Ah Nominal Voltage: 51.2V
Internal Impedence: Operating Votage:
Dimension: Battery Weight:

Product Description

Features



  • PET is able to bear 850kg, avoid bulging

  • CCS vehicle-grade craft,integrated wires

  • Support RS485/CAN/Bluetooth etc

  • 3-4mm metal plates at both side

  • Reserve 1mm width for potential bulging

  • Distributed sampling system to solve sampling impedance problem



Specifications


Item

Rated Performance

Cell Model

16S1P

Communication Function

CAN / RS485/ Bluetooth APP

Way to work

Use alone or in parallel

Rated Capacity

Typical 150Ah

Nominal voltage

51.2V

Discharge cut-off voltage

44.8V

Charging voltage

58.4V

Internal resistance, AC Impedance, 1KHz

8mΩ

Standard charge current

0.5CA

Standard discharge current

1CA

Fast Charge

1CA

Fast Discharge

200A

Maximum Continuous Charge Current

1CA

Maximum Continuous Discharge Current

200A

Discharge Pulse Current

300A, 60S

Operation Temperature Range

Charge: 0~55℃, Discharge: -20~65℃

Weight

Approx:71Kg

Dimension

675(H)*325(W)262.5(T)±5mm

Ingress Protection

IP65

Cycle life

3000cycles @80%DOD, 0.5C, 23±2℃



48v 150ah lifepo4 battery dimensions

48v 150ah lithium golf cart battery details48v 150ah lithium golf cart battery details48v 150ah lithium golf cart battery details


Battery Precautions and Safety Instructions:


To ensure proper use of the battery please read the instructions carefully before using it.


Handling


  • Do not expose or dispose the battery in fire.

  • Do not put the battery in a charger or equipment with wrong terminals connected.

  • Avoid battery short circuit.

  • Avoid excessive physical shock or vibration.

  • Do not disassemble or deform the battery.

  • Do not immerse in water.

  • Do not use the battery mixed with other brand, type or model.

  • Keep out of the reach of children.



Charge



  • Battery must be charged in appropriate charger only.

  • Never use a modified or damaged charger.

  • Do not leave battery in charger over 24 hours.

  • Charging current: Don’t surpass the highest charge current as stated in this specification sheet.

  • Charging voltage: Don’t surpass the highest charge voltage as stated in this specification sheet.

  • Charge temperature: The battery must be charged in the ambient temperature range as stated in this specification sheet.

  • Charge the battery via constant current first and then via constant voltage, no reverse charge. If the positive electrode and the cathode mixed, the battery can be damaged.

  • Store the battery after it's charged. The battery should be recharged/re-discharged every 3 months.


Discharge


  • The discharge current shouldn’t surpass the highest discharge current as stated in this

  • specification sheet. If surpass, the battery may be damaged and it can result in hot battery which is risk.

  • Discharge temperature range: The discharge must be done in the ambient temperature range as stated in this specification sheet.

  • Over-discharge: A short-time over-discharge will not affect the use of the battery, but long-time will do. If the battery is not used for a long time, the performance will get poorer. It should be recharged and re-discharged fully several times before it's recovered.
