24V lifepo4 battery 24V 206Ah Battery Module
|
Product Details:
|
| Nominal Capacity: | 206Ah | Nominal Voltage: | 24V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | 20-29.2V | |

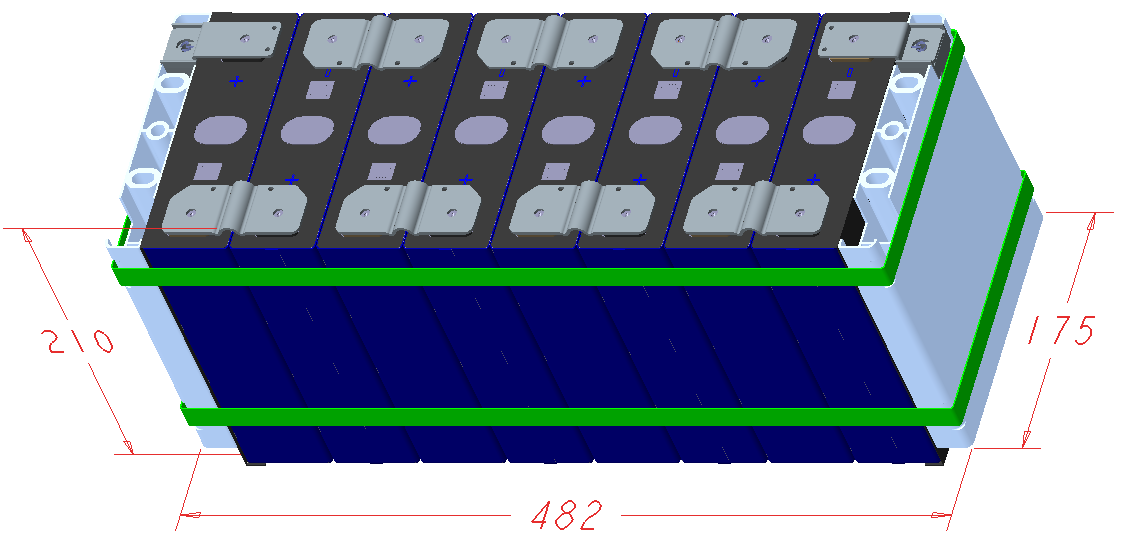

| Dimension: | 482*175*210 | Battery Weight: | 34.5kg±0.5 |
Product Description
24V lifepo4 battery 24V 206Ah Battery Module
1P8S 24V206Ah
Application：
Low speed car, golf cart, energy storage cabinet
Features：
Standard module，Widely use，Standard spare and accessory parts
|
No |
Item |
Parameter Specification |
|
1 |
Rated Capacity |
206Ah |
|
2 |
Rated voltage |
25.6V |
|
3 |
Voltage range |
20-29.2V |
|
4 |
Module power |
5274Wh |
|
5 |
Overall length |
482±1mm |
|
6 |
Width dimension |
175±1mm |
|
7 |
Overall height |
210±1mm |
|
8 |
Weight |
34.5kg±0.5 |
|
9 |
Maximum continuous discharge current |
206A |
|
10 |
Maximum continuous charge current |
200A |
|
11 |
Working temperature range |
Charging 0~55℃， Discharging -20~60℃ |
