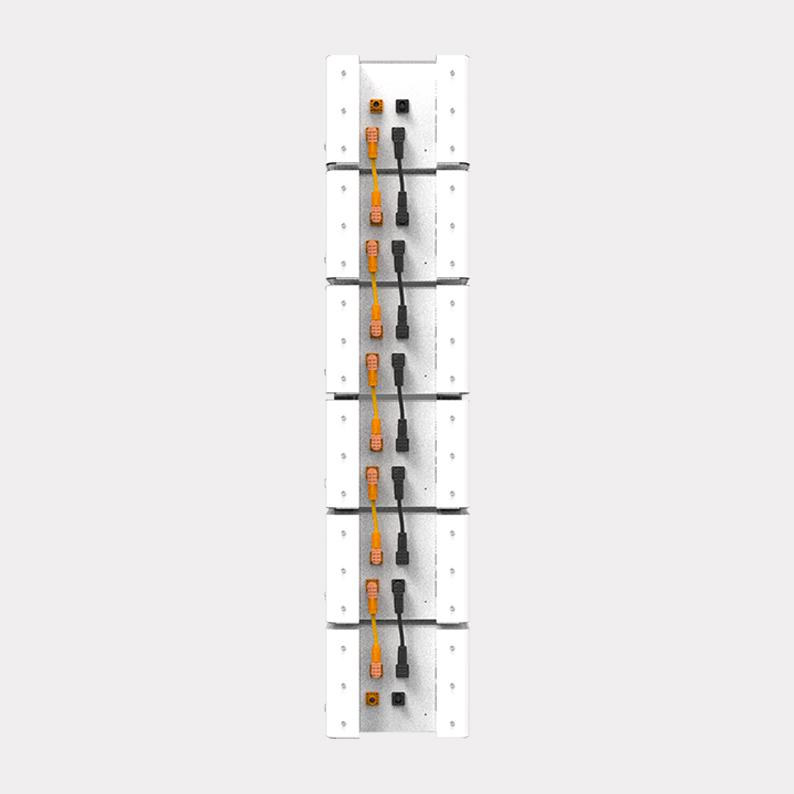

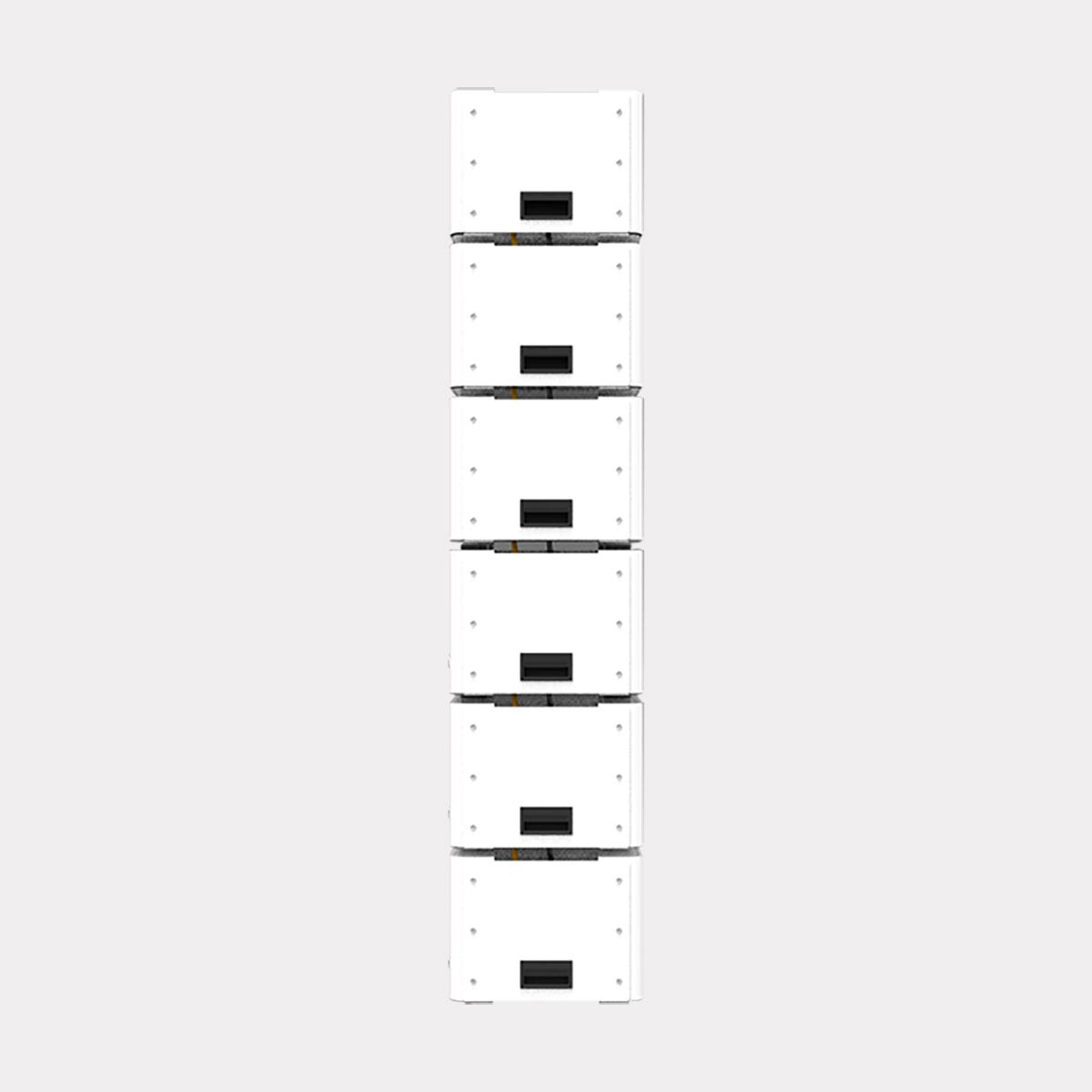

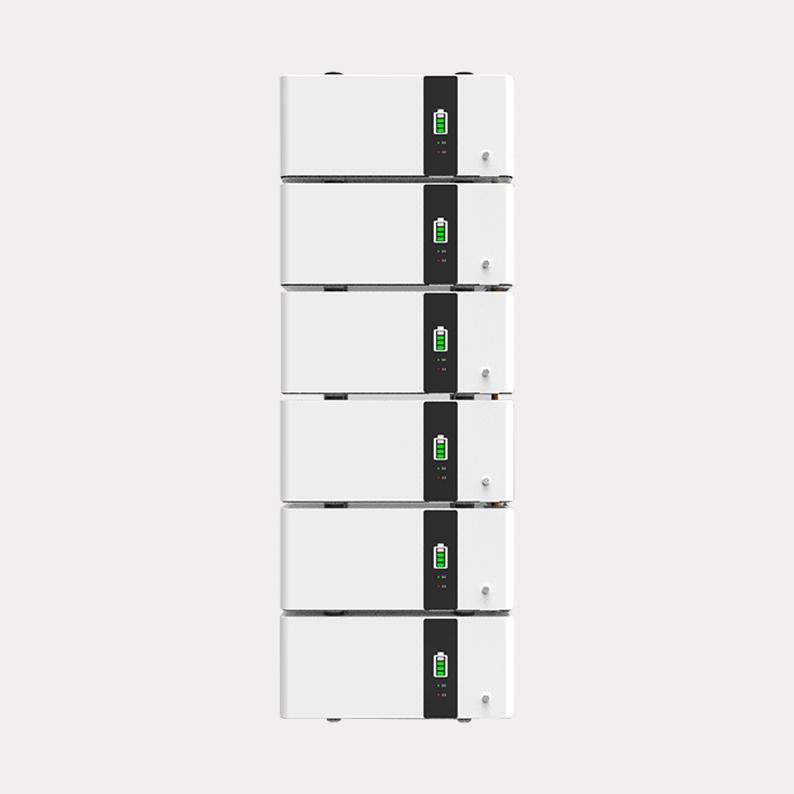

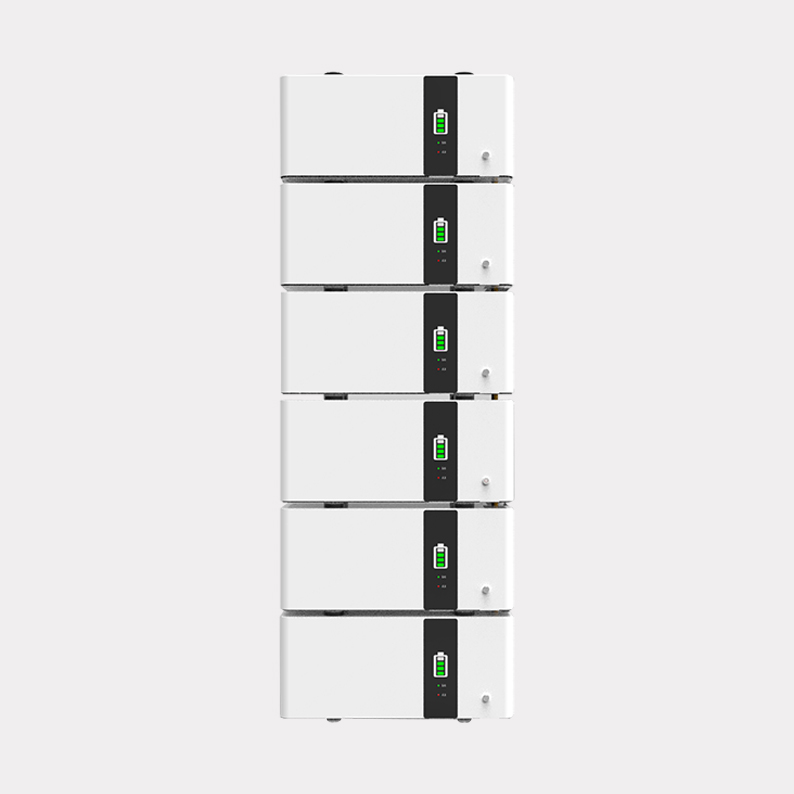

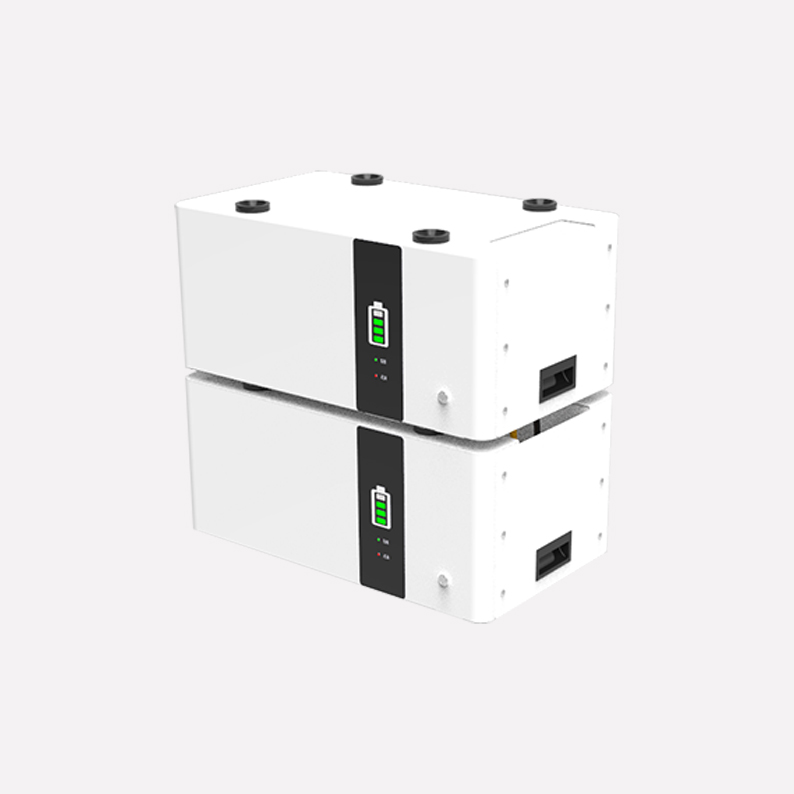

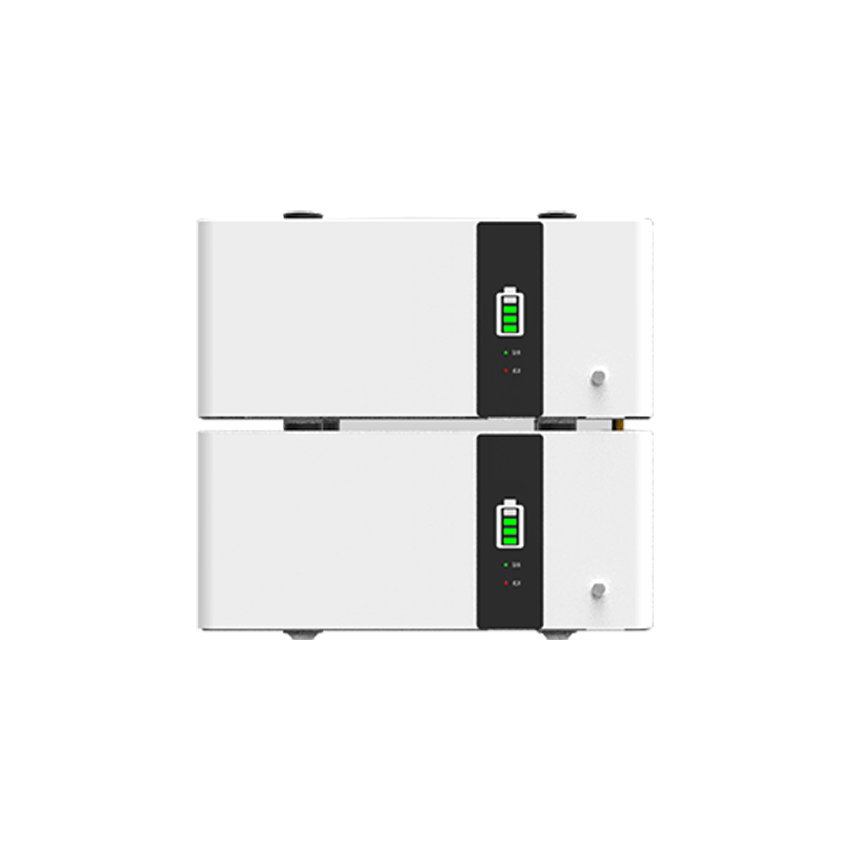

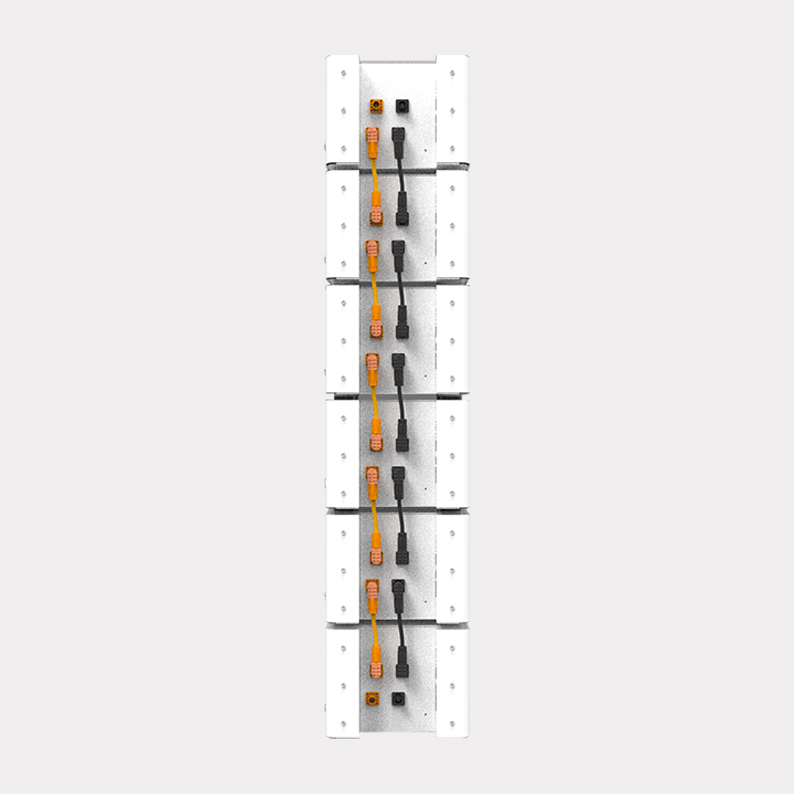

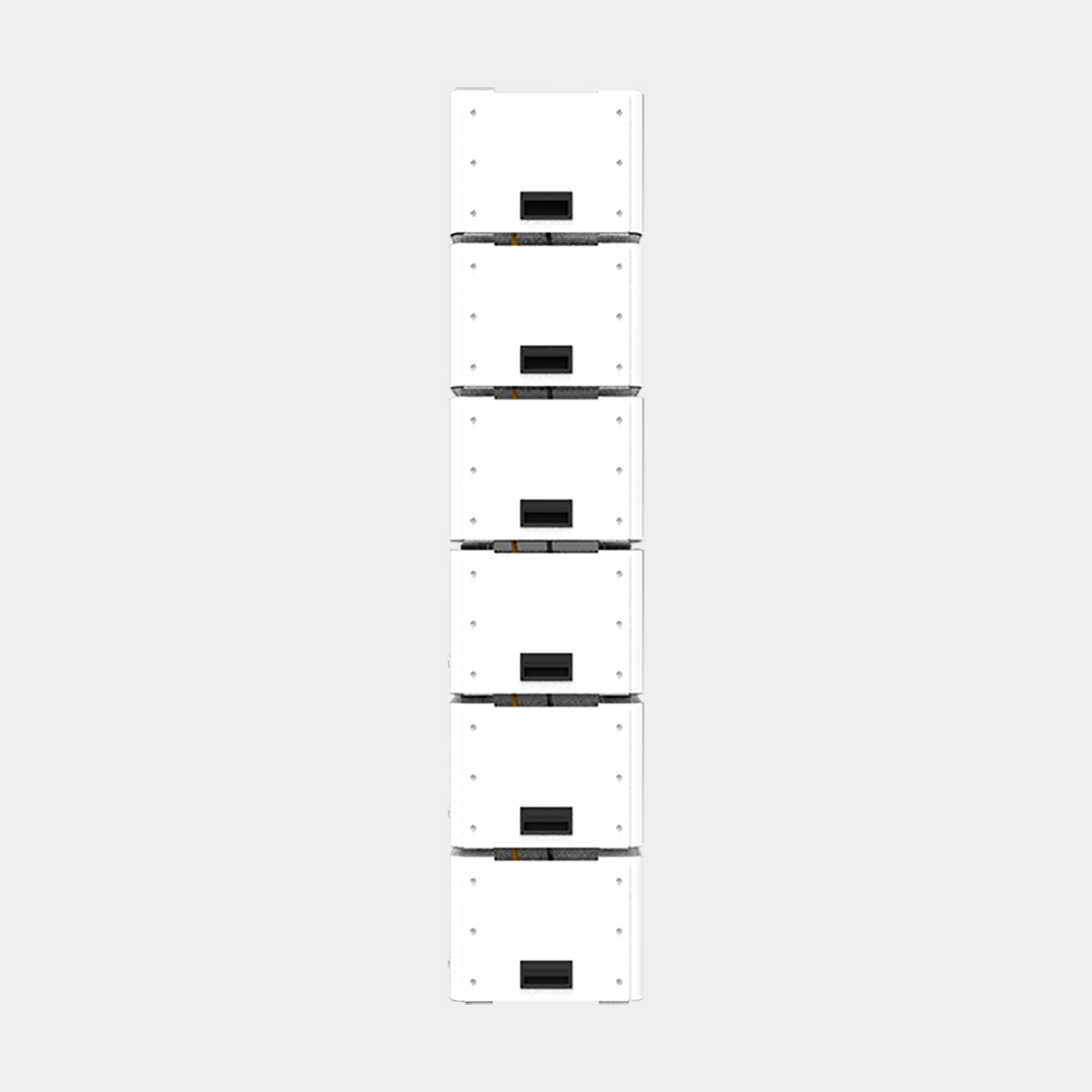

EVL-300 Floor mounted Solar Energy Storage System 2.4Kwh-19.2Kwh
|
Product Details:
|
| Nominal Capacity: | 50Ah | Nominal Voltage: | 48V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | 39V-54.75V | |
| Dimension: | 480*280*860mm | Battery Weight: | 32kg |
Product Description

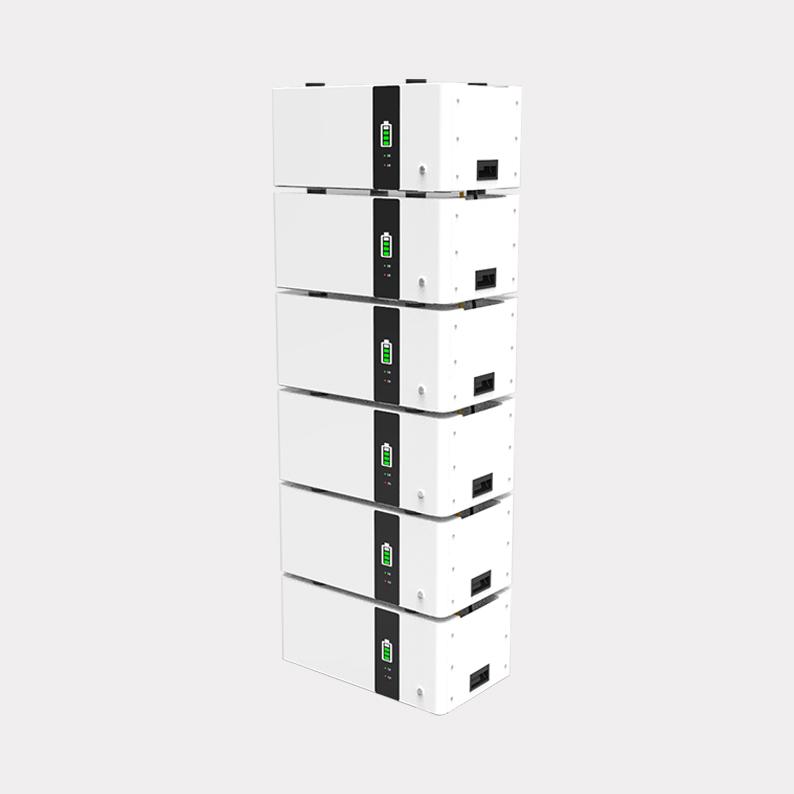

EVL-300 Floor mounted Solar Energy Storage System 2.4Kwh-19.2Kwh
EVL300
Solar Energy Storage System
Floor mounted
Low voltage system
Modular desigh, conwenient maintenance and expansion
2.4kwh-19.2kwh
Specification
Solar Energy Storage System | |
Low Voltage | |
Capacity Energy(Wh) | 2400Wh(Per Pack) |
Capacity(Ah) | 50Ah(Per Pack) |
Suggested SOC | 5%-95% |
Nominal Voltage(V) | 48V |
Operation Voltage(V) | 39V-54.75V |
Maximum Charging/Discharging Current(A) | 50A/50A Per Pack |
Operation Temperature(℃) | Charge:0~45℃ Discharge:-20~45℃ |
Storage Temperature(℃) | -20-45℃ |
Weight(kg) | 32kg |
Dimensions(mm) | 480*280*860mm |
Certifications | MSDS, UN38.3, ROHS, CE |
IP Grade | IP54 |
Number of cycles | 6000@25℃ 80%DOD |
Communication | RS232, RS485, CAN |

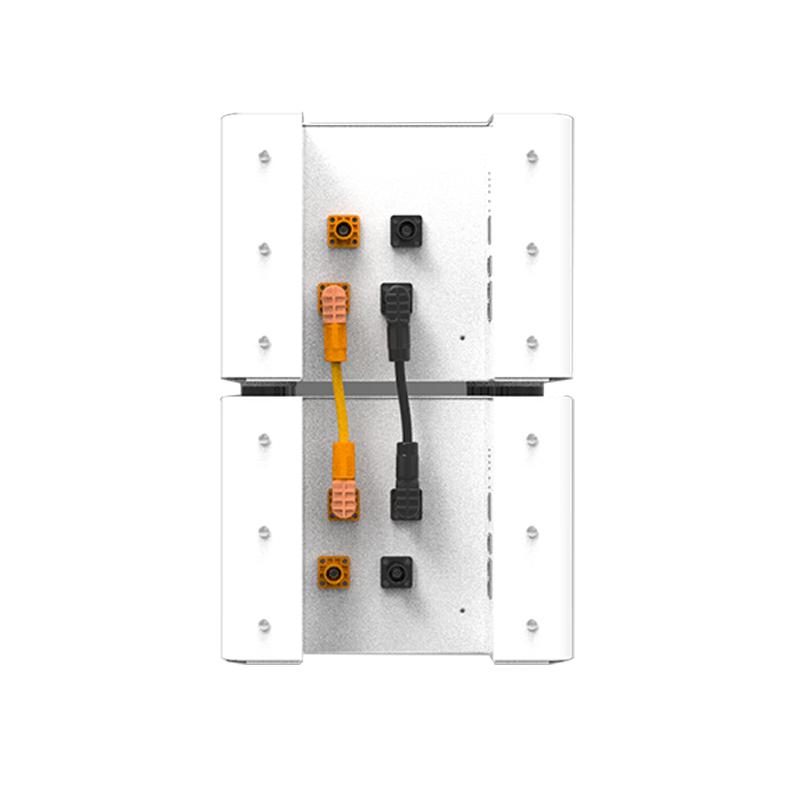

Module Capacity Energy | 1PACK-2400Wh 2PACKS-4800Wh 3PCAKS-7200Wh 4PACKS-9600Wh The maximum 8 battery packs can be parallelly communicated. |
