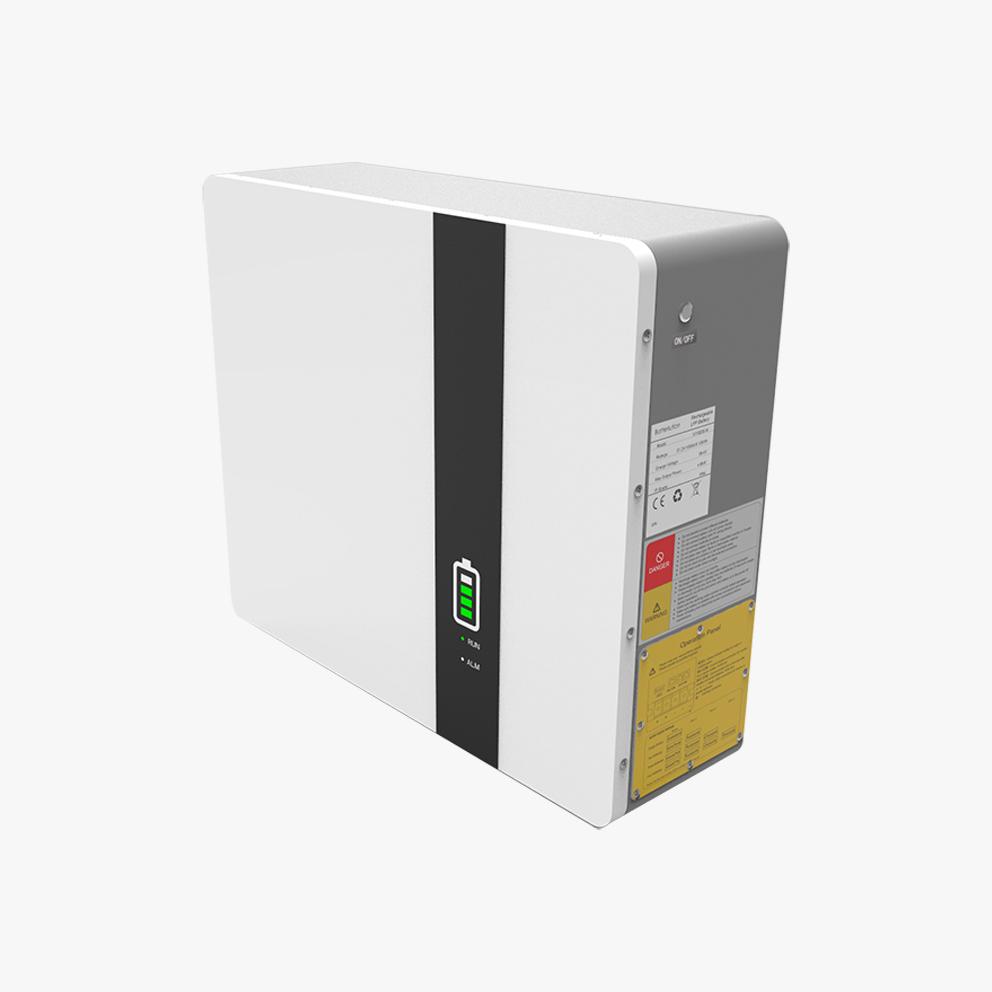

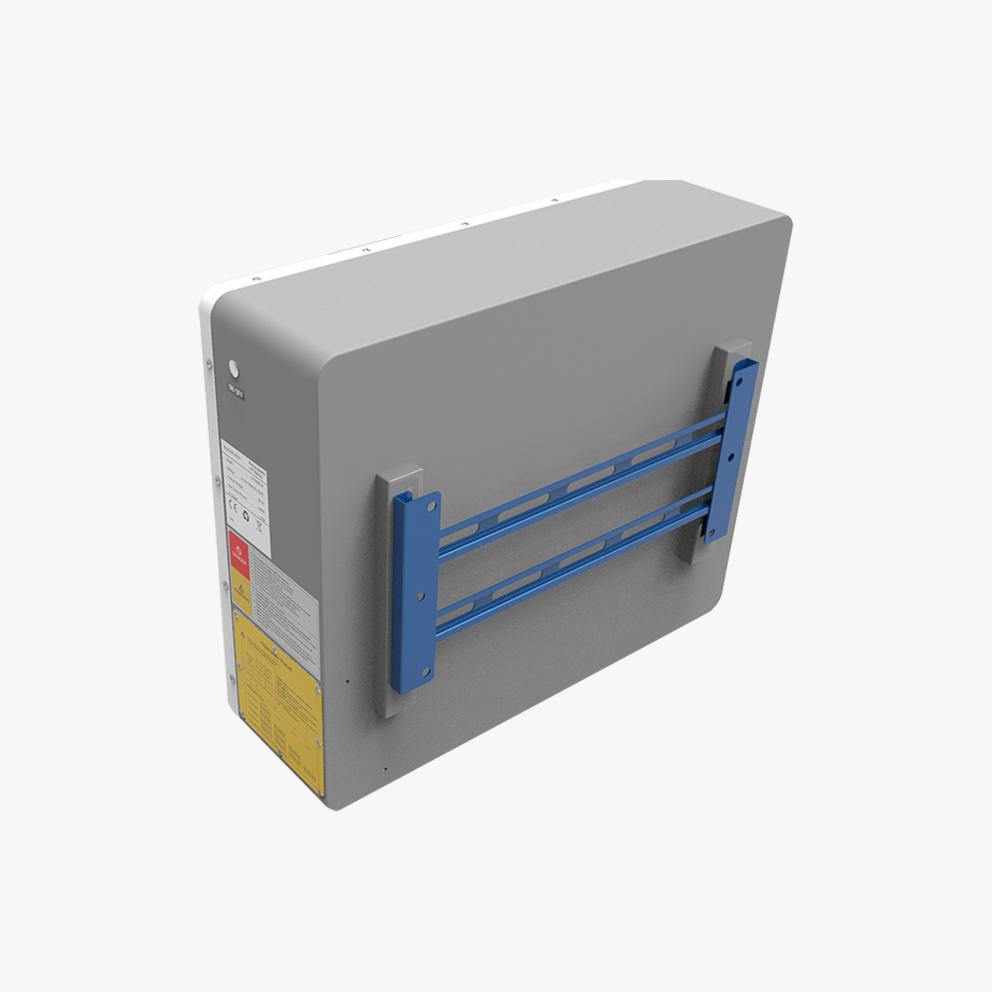

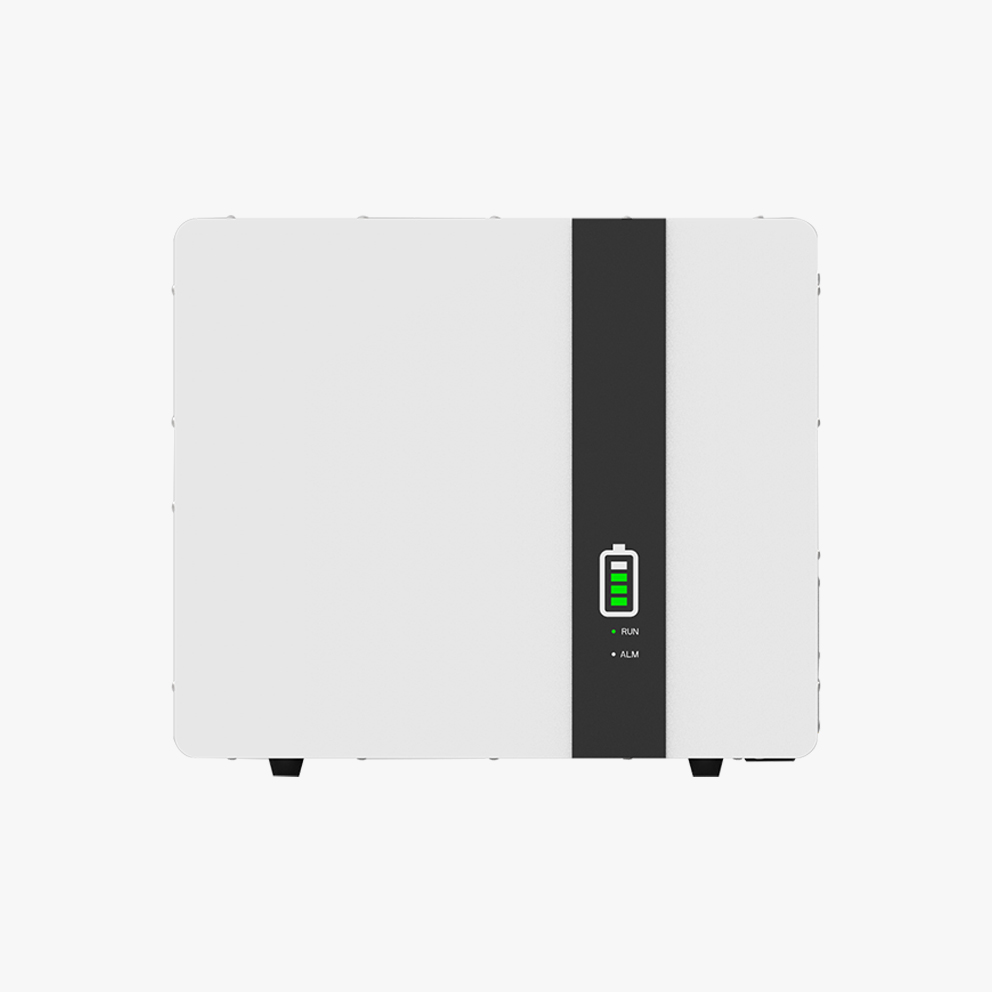

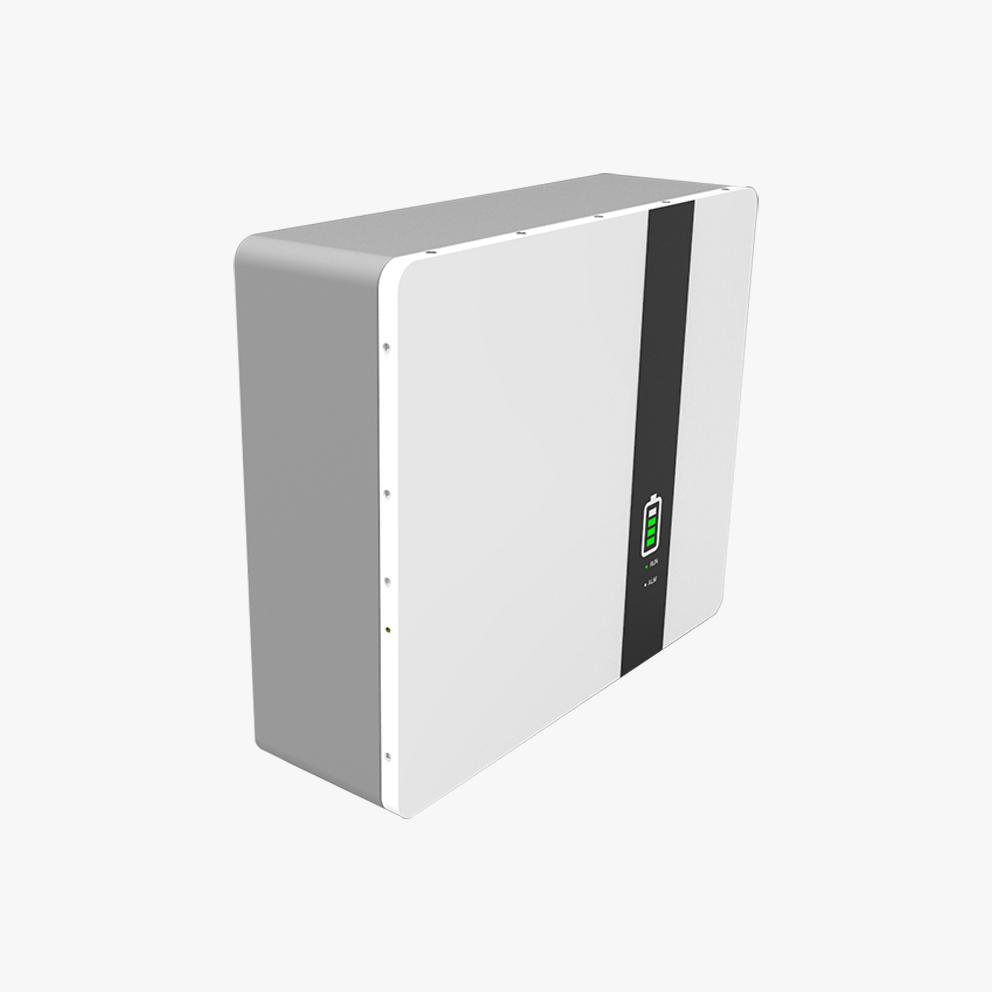

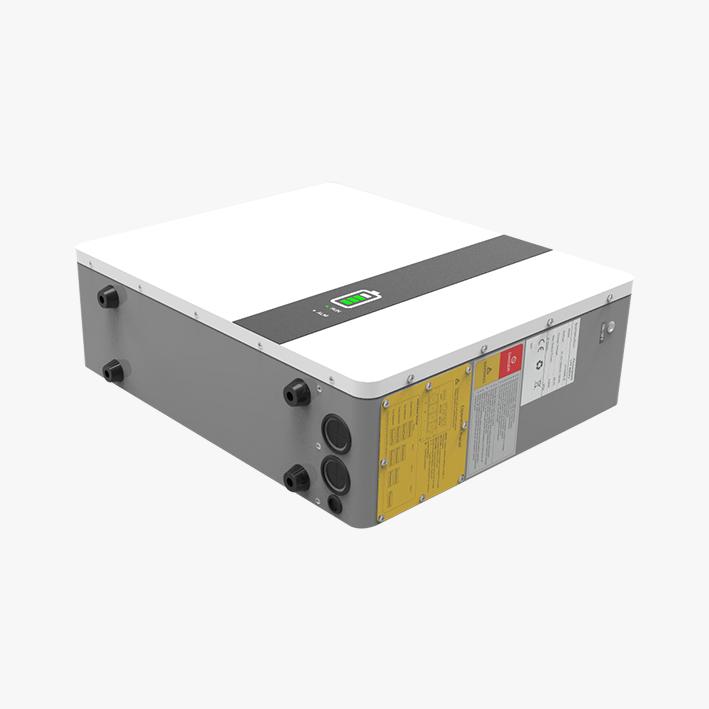

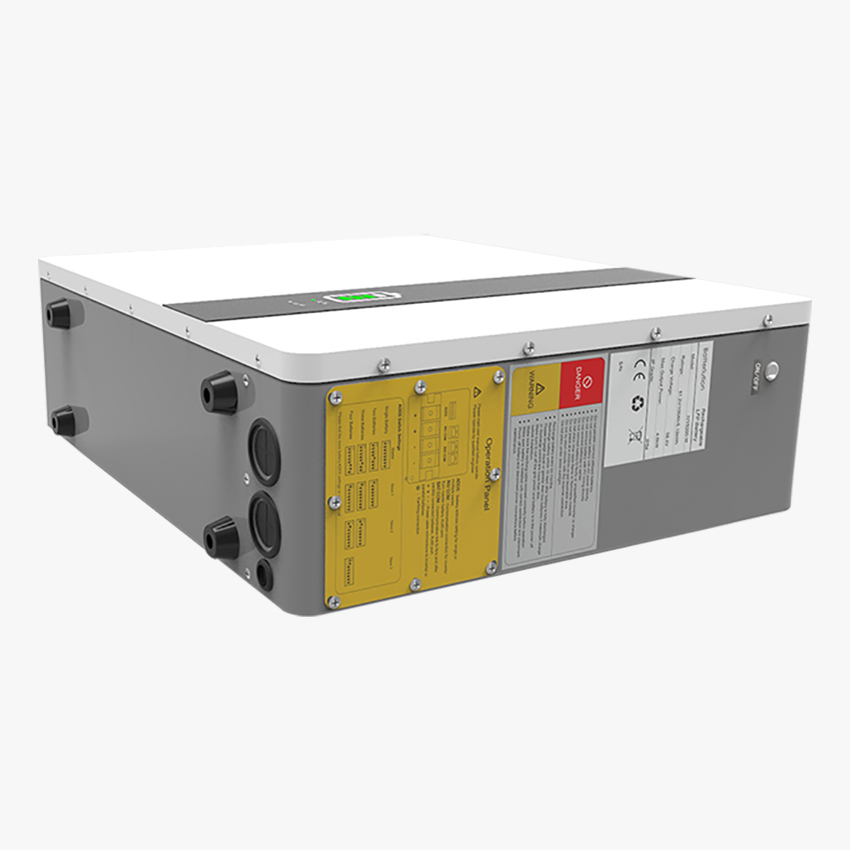

EVL-500 wall mounted Solar Energy Storage System

Product Details:
Place of Origin: China
Brand Name:
Certification: CE
Model Number: 48V100AH
Payment & Shipping Terms:
Retail Price:
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
Nominal Capacity: 100Ah Nominal Voltage: 48V
Internal Impedence: Operating Votage: 43.2-58.4V
Dimension: 480*160*560mm Battery Weight: 50kg

Product Description

EVL-500 wall mounted Solar Energy Storage System


EVL500

Solar Energy Storage System


Wall mounted

Low voltage system

Modular desigh, conwenient maintenance and expansion


EVL-500 wall mounted Solar Energy Storage System


Specification

Solar Energy Storage System

Low Voltage Wall Mounted

Capacity Energy(Wh)

5120Wh(Per Pack)

Capacity(Ah)

100Ah(Per Pack)

Suggested SOC

5%-95%

Nominal Voltage(V)

51.2V

Operation Voltage(V)

43.2V-58.4V

Maximum Charging/Discharging Current(A)

100A/100A Per Pack

Operation Temperature(℃)

Charge:0~45℃ Discharge:-20~45℃

Storage Temperature(℃)

-20-45℃

Weight(kg)

50kg

Dimensions(mm)

480*160*560mm

Certifications

MSDS, UN38.3, ROHS, CE

IP Grade

IP65

Number of cycles

6000@25℃ 80%DOD

Communication

RS232, RS485, CAN

Module Capacity Energy

25.6V 100Ah

25.6V 200Ah

48V/51.2V 100Ah

48V/51.2V 200Ah

The maximum 8 battery packs can be parallelly communicated.
