Product Details:
|
| Nominal Capacity: | 163Ah | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | 0.2~0.5mΩ | Operating Votage: | 2.5V~3.65V |
| Dimension: | 174.4*36.6*230.5mm | Battery Weight: | 3.19±0.15kg |

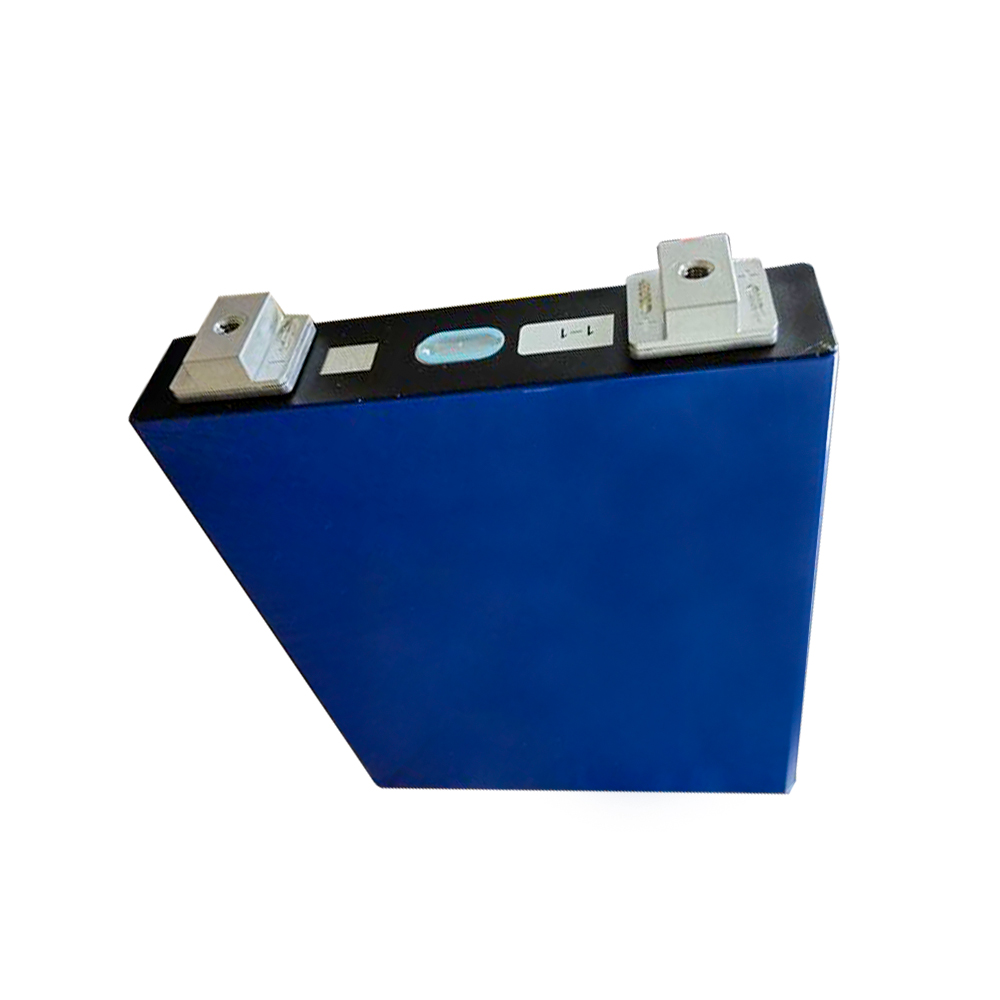

CALB L176F163 3.2V 163Ah LiFePO4 Prismatic Battery Cells
-Qualified for RoHS & CCC winth high safely
-More than 2000 cycles under
the designed working condition
-Anti-explosion safely valve
applied
-Ceramic membrane technology
applied to enhance safety
-High energy
density:163wh/kg
-High charge/discharge
rates
Brand new CALB prismatic LiFePO4 battery cell with
Aluminum shell, supports welded or bolted connections, long cycle life, high energy density and wide operating
temperature range, suitable for energy storage, solar system, EV, RV, yacht, etc.
Please read USER MANUAL before use.
Parameters
Items | Parameter | |
Module | L173F163B | |
Nominal Voltage | 3.2V | |
Nominal Capacity | 163Ah | |
Dimension | 174.4*36.6*230.5mm | |
Internal Resistance | 0.2~0.5mΩ | |
Charge | Charge Voltage | 3.65V |
End Of Discharge Voltage | 2.5V | |
Standard Charge Current | 0.5C | |
Max. Charge Current | 163A(1C) | |
Discharge | Standard Discharge Current | 0.5C |
Max. Continuous Discharge | 163A(1C) | |
Max. Pulse Discharge | 489A(3C) | |
Operating | Charging Temperature | -5~60°C |
Discharging Temperature | -20~60°C | |
Weight | 3.19±0.15kg | |
Shell Material | Aluminium | |
