CATL 3.2V 100Ah LiFePO4 Battery Cell

Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: CATL 100Ah
Payment & Shipping Terms:
Retail Price: 80 USD
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
Nominal Capacity: 100Ah Nominal Voltage: 3.2V
Internal Impedence: 0.39±0.05mΩ Operating Votage: 2.8V-4.0V
Dimension: 200*172*33mm Battery Weight: 2.27±0.30Kg

Product Description

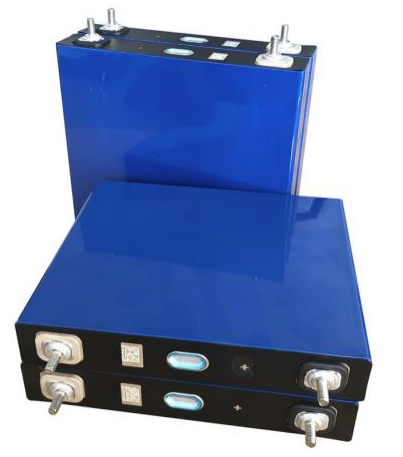

3.2V 100Ah CATL LiFePO4 Battery cell with screws for easy connection


Module:001CB270
Nominal Voltage:3.2V
Nominal Capacity:100Ah
Internal Resistance:0.39±0.05mΩ
Dimension: 200.33*172.2*33.22mm±0.5mm
Weight:2.27±0.30Kg






Parameters

Item

Specification

Nominal voltage

3.2V

Typical capacity

100Ah

Operating voltage

2.5~3.65V

Impedance (1KHz)

0.39±0.05mΩ

Shipping capacity

40±1Ah

Residual capacity

≤3.5%

Operating temperature range

Charging: 0~55℃,

Discharging: -30~55℃

Storage temperature

-30~60℃

Standard charge   current

0.5C

Max. continuous charge current

1C

Standard discharge   current

0.5C

Maximum discharge current (continuous)

1C

Typical dimension

200*172.2*33.22mm

Weight

2.27±0.30Kg





Now we provide the specially customized 100Ah 3.2V CATL LiFePO4 Battery cell with screws for easy connection.It has long cycle life, high energy density and a wide operating temperature range.
