CATL 3.2V 280Ah LiFePO4 Battery Cell

Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: CATL 280Ah
Payment & Shipping Terms:
Retail Price: 224 USD
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
Nominal Capacity: 280Ah Nominal Voltage: 3.2V
Internal Impedence: 0.39±0.05mΩ Operating Votage: 2.8V-4.0V
Dimension: 207*174*72 mm Battery Weight: 5.34±0.30Kg

Product Description

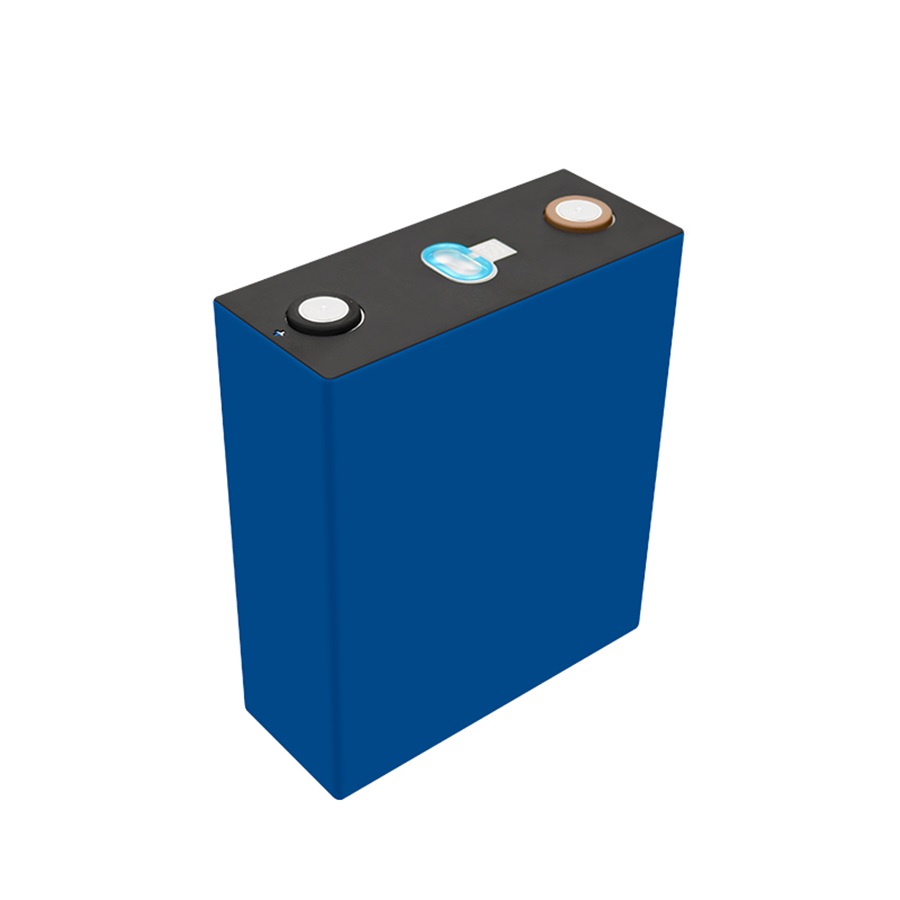

CATL 3.2V 280Ah LiFePO4 Prismatic Battery Cell



Nominal Voltage: 3.2V
Nominal Capacity: 280Ah
Internal Resistance ≤0.18mΩ
Operating Voltage: 2.5V~3.65V
Dimension: 207*174*72 mm
Weight: 5.34±0.30Kg
Cyle Life: ≥6000Cycles


Item

Parameter

Nominal Capacity

280Ah

Nominal Voltage

3.2 V

Internal Resistance

≤0.18mΩ


Charging (CC-CV)

Continuous Charging Current

1C

Maximum Charging Current

3C

Charging Upper Limit Voltage

3.65V


Discharging

Continuous Discharging Current

1C

Maximum Discharging Current

3C

Discharging Cut-off Voltage

2.5V

Recommended SOC Usage Window

SOC: 10%~90%

Operation Thermal Ambient

Charging

0°C ~ 65°C

Discharging

-35°C ~ 65°C

Storage Thermal Ambient

Short-term (within 1 month)

-20°C ~ 65°C

Long term (within 1 year)

-20°C ~ 55°C

Storage Humidity

< 70%

Battery Weight

Around 5.34kg

Shell Material

Aluminum

Cell Dimensions

207*174*72 mm


Details


CATL 3.2V 280Ah lithium iron phosphate LiFePO4 battery is a new model with an aluminum case produced by CATL, a leading lithium battery supplier from China; this battery cell has a super long cycle life of more than 12000times, have a stable performance used for ESS(energy storage system). All the cells we provide are brand new grade A with test report and all kinds of certifications.



Catl 3.2V 302ah Aluminum Lithium Iron Phosphate LiFePO4 Prismatic Battery
