Product Details:
|
| Nominal Capacity: | 2000mah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | Max Height:65.3 mm Max diameter :18.4 mm | Battery Weight: | ≤43g |

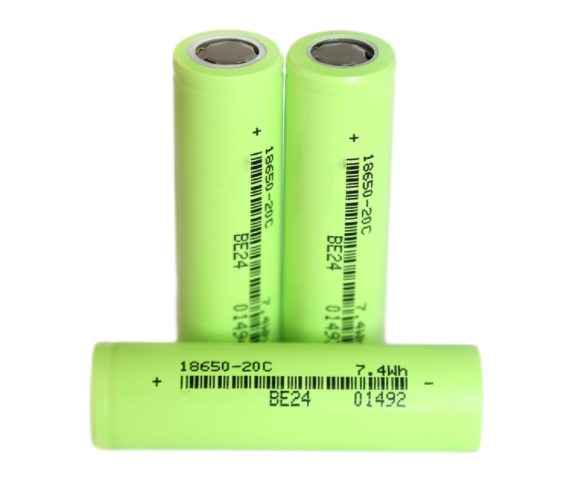

This series of lithium batteries mainly include nmc battery series power cells 2000mAh, 2500mAh, 2600mAh; lifepo4 battery series 1800mAh, 2000mAh, 2200mAh.
Application areas include balance vehicles, scooters, two-wheeled electric vehicles, and portable energy storage.
It has passed ISO9001, 14001, 45001 system certification and industrialization integration management system assessment, and its products have passed CB, BIS, UN38.3, UL, CE, KC and other product certifications. And German TUV strength certification.
Parameters：
Item | Specification |
Capacity (min.) | 1800mAh |
Normal voltage | 3.2v |
Max charging voltage | 3.65±0.05V |
Discharge ending voltage | 2.0V |
Standard charging current | 0.5C |
Continue charging current | 0.5C |
Continue discharging current | 1C |
Max discharging current | 3C |
Internal resistance | IR≤25mQ |
dimension | Max Height:65.3 mm Max diameter :18.4 mm |
Weight | ≤43g |
Charge temperature | 0~45 ℃ |
Discharge temperature | -20~60 ℃ |
