LTO battery Cell 2.4V 10Ah

Product Details:
Place of Origin: China
Brand Name: shengquan
Certification: CE
Model Number: shengquan 10Ah
Payment & Shipping Terms:
Retail Price: 17.2 USD
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
Nominal Capacity: 10 Ah Nominal Voltage: 2.4V
Internal Impedence: ≤0.8mΩ Operating Votage: 1.5V-2.8V
Dimension: 33.5*145.75mm Battery Weight: 285.0g±10g

Product Description

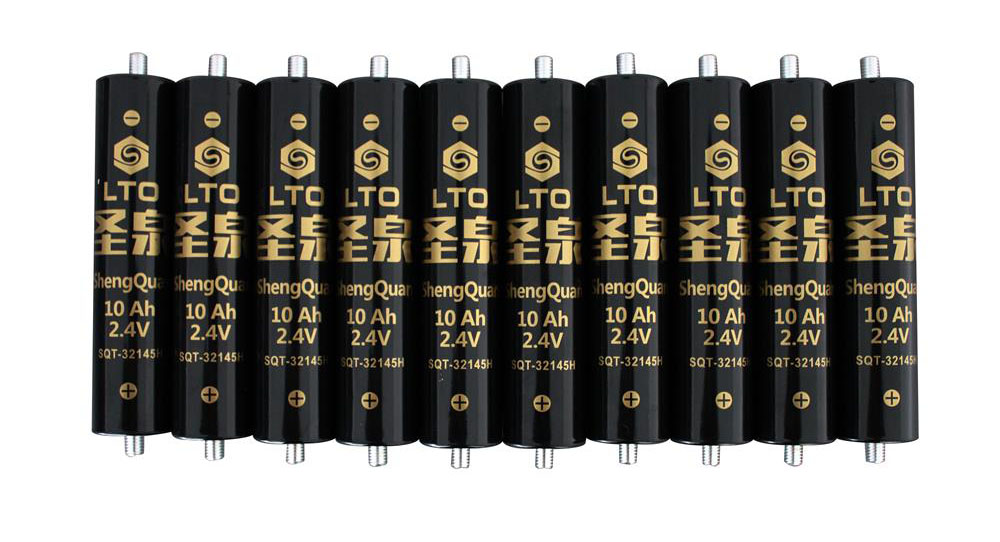

Shengquan 2.4V 10Ah Lithium titanate LTO Battery Cell

LTO battery Cell 2.4V 10Ah

The Lithium titanate LTO battery is the safest lithium battery at present.  It will not catch fire or explosion under collision, over the charged or short circuit; The 2.4V 10Ah to battery cell has a max pulse charge and discharge current of 10C rate and continuous charge of 4C, discharge of 6C. It also has a wide operating temperature range from -40℃ to 60℃ and can be widely used in high and cold areas, alpine regions, refrigeration storage, etc.

Product Advantages

High safety: no combustion, no explosion
High rate: fast charge and discharge 20C
Long woking life: more than 30000 cycles
Wide working temperature range: -40~60 degree centigrade

LTO battery Cell 2.4V 10Ah

Parameters

Item

Parameters

Nominal Capacity

10Ah

Nominal Voltage

2.4V

Internal Impedance

≤0.8mΩ

Standard Charge Cut-off Voltage

2.8V

Standard Discharge Cut-off Voltage

1.5V

Maximum Continuous Charge Current

4C (40A)

Maximum Continuous Discharge Current

6C (60A)

Maximum Pulse Charge/Discharge Current(10s)

20C (200A)

Operating Temperature Range

-40~60

Operating Humidity Range

Humidity: ≤85%RH

Storage Temperature Range

-5~28

Weight

285.0g±10g

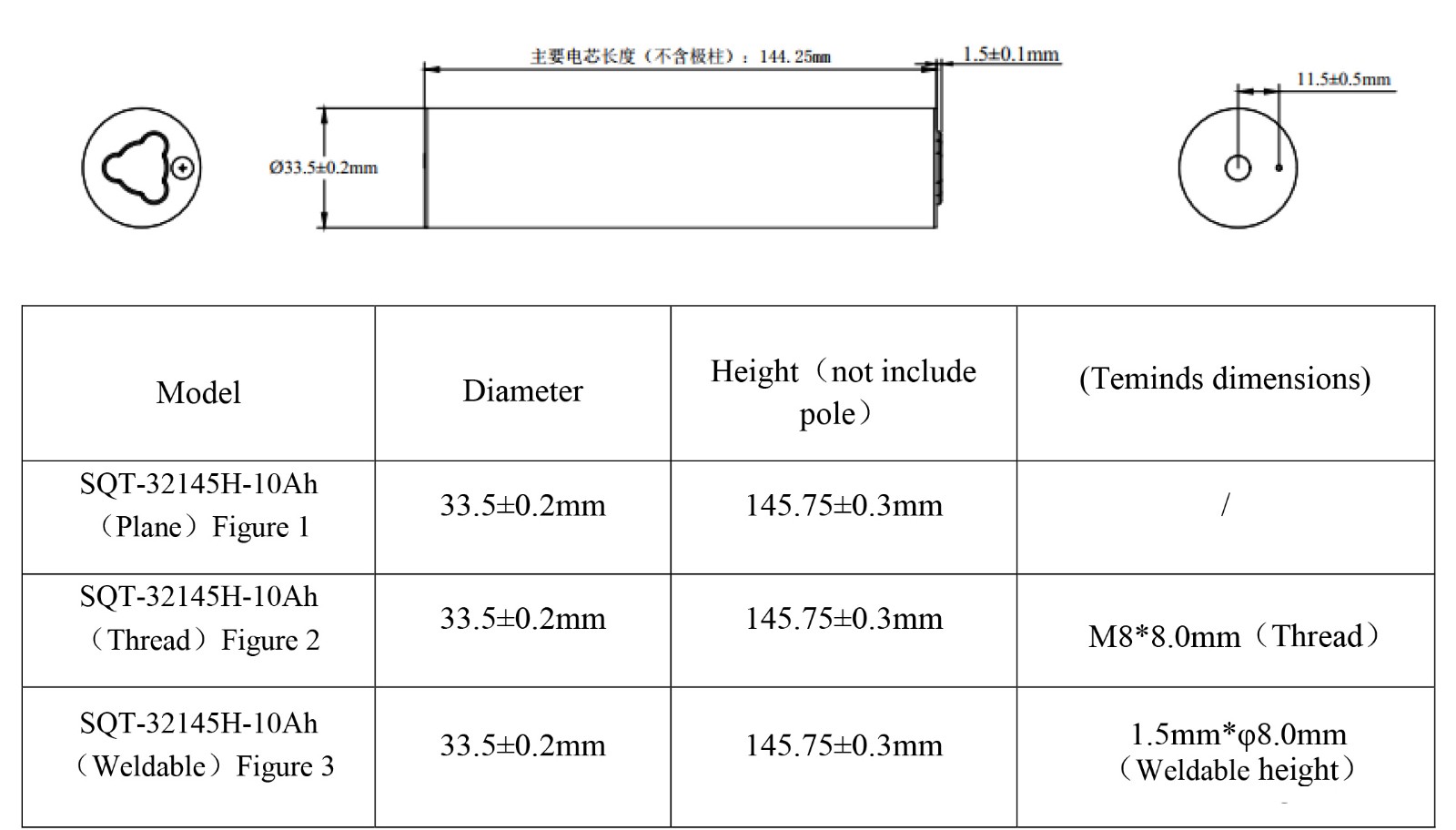

Dimension

33.5*145.75mm

Cycle Life

20000times @80%DOD
