Product Details:
|
| Nominal Capacity: | 50Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.7mΩ | Operating Votage: | 2.50V~3.65V |
| Dimension: | 64*151mm | Battery Weight: | 1kg |

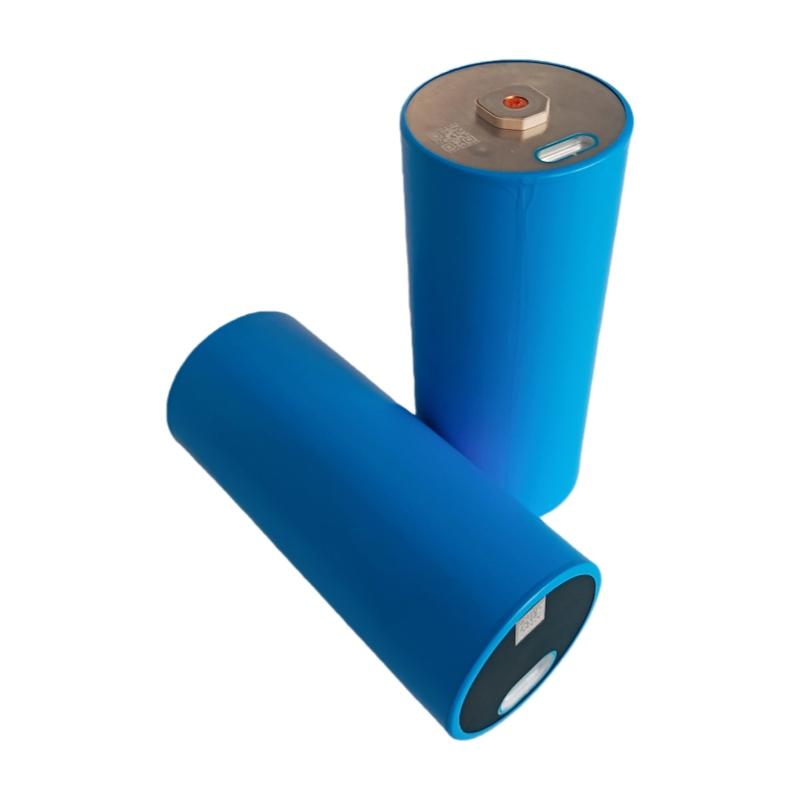

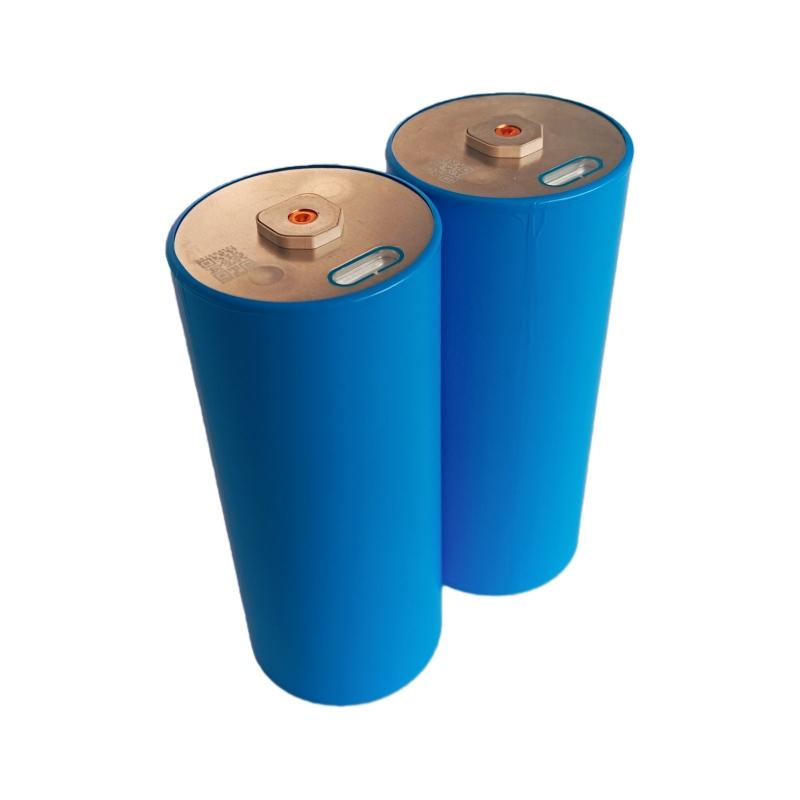

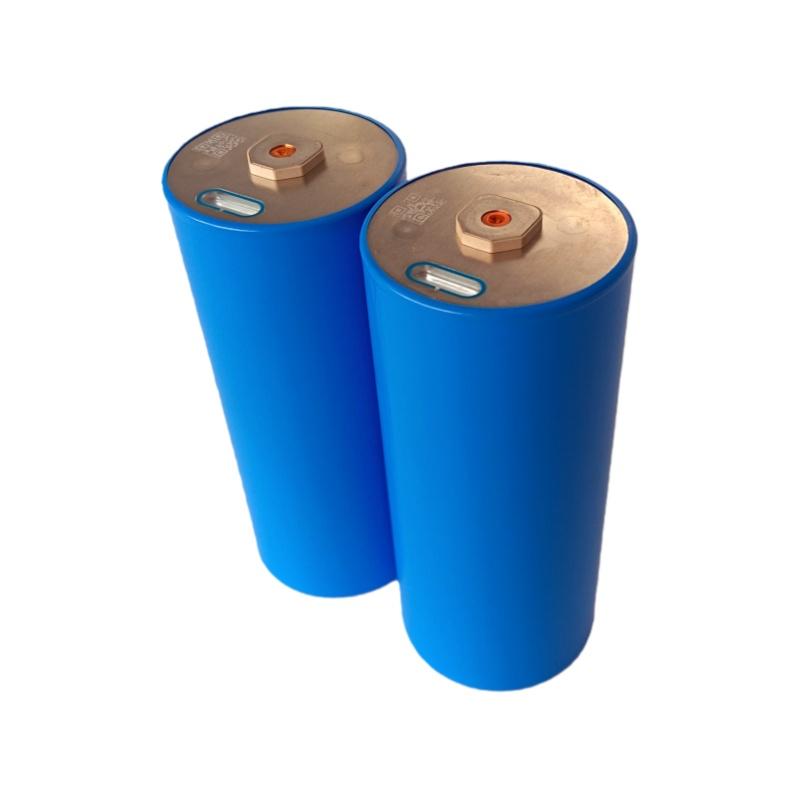

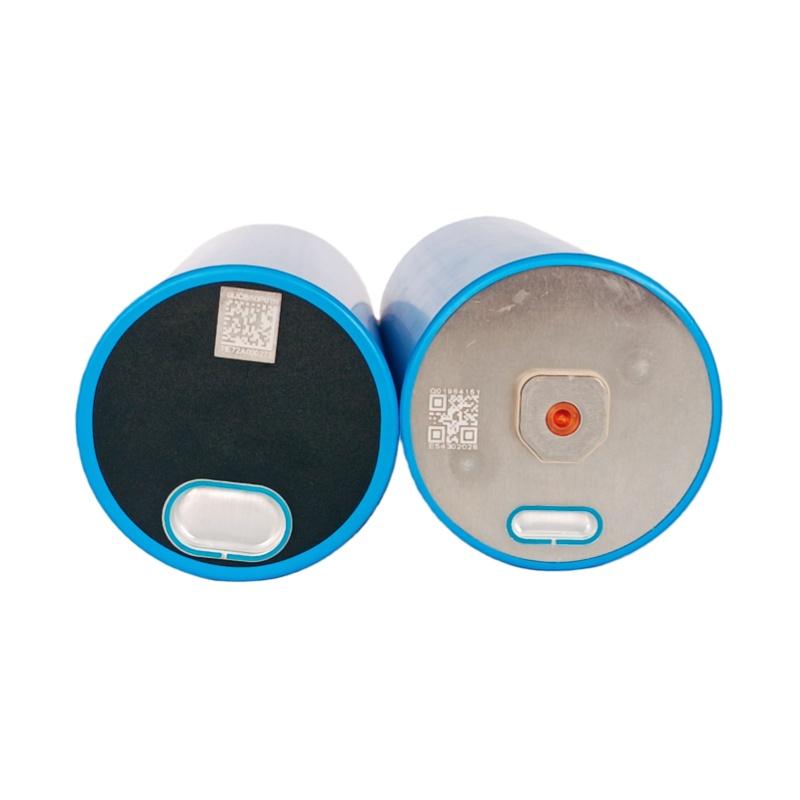

Built for high-demand energy systems, these 3.2V 50Ah LiFePO4 cells are UL9540A, IEC62619, and UN38.3 certified. Manufactured to HITHIUM's Class A standards, they provide a safe, durable power solution for solar storage, industrial backup, electric vehicles, and off-grid use.
High Safety & Reliability: Built for peace of mind in household energy storage.
Broad Compatibility: Adaptable to mainstream systems and versatile for portable, industrial, commercial, and base station use.
Wide operating temperature range: Supports charging at temperatures from -20 °C to 60 °C, and discharging at temperatures from -30 °C to 60 °C.
Extended Service Life: Cycle life of up to 8,000 cycles.
Cost-Effective: Delivers high performance at a competitive cost.
| Basic Parameters | |
|---|---|
| Nominal Capacity | 50 Ah ¹·² |
| Nominal Energy | 160 Wh ¹·² |
| Chemistry | LiFePO4 (LFP) |
| Cycle Life | 8,000 ²·³·⁵ |
| Gravimetric Energy Density | ≥ 150 Wh/kg |
| Volumetric Energy Density | ≥ 330 Wh/L |
| Model | LFP64151 |
| Electrical Parameters | |
|---|---|
| Nominal Voltage | 3.2 V ¹·² |
| Operating Voltage | T > 0°C 2.50 - 3.65 V T ≤ 0°C 2.00 - 3.65 V |
| Internal Resistance (1 kHz) | ≤ 0.7 mΩ ⁴ |
| Self-discharge Rate | 3%/month ²·⁴ |
| Max Continuous Charge C-rate | 1C |
| Max Continuous Discharge C-rate | 2C |
| Mechanical Interface | |
|---|---|
| Dimensions (D x H) | 64 x 151 mm |
| Type | Cylindrical Cell |
| Weight | 1 kg +/- 0.1 |
| Volume | 0.48 L |
| Temperature Range | |
|---|---|
| Charging | -20°C ~ 60°C |
| Discharging | -30°C ~ 60°C |
| Storage (Recommended) | -20°C ~ 35°C |
| Product Certification | |
|---|---|
| Certifications & Reports | IEC 62619, UL 9540A, UL 1973 UN 38.3 |
| Environmental Compliance | |
|---|---|
| Compliance | RoHS, REACH, Battery Directive |
| Company Certifications | |
|---|---|
| Company Certifications | ISO 9001, ISO 14001, ISO 45001 |
0.5C/0.5C
25°C +/- 2.0
70% SOH
27% SOC
1C/1C
The HITHIUM Grade A Lithium Iron Phosphate (LiFePO4) battery from Haichen Lithium Energy is widely used in high-energy storage and power application scenarios, including:
Solar Energy Storage Systems — Ideal for off-grid and grid-connected solar battery banks.
Electric Vehicles (EVs) and Electric Bicycles — Provide efficient and long-lasting power for mobility solutions.
Uninterruptible Power Supply (UPS) and Backup Power — Ensure a reliable energy supply during power outages.
Marine and Recreational Vehicle (RV) Battery Systems — Offer stable energy for off-grid adventures.
Battery Packs and DIY Energy Storage — Commonly used in customized power storage solutions.
Industrial and Commercial Applications — Power high-energy-consuming equipment in factories and telecommunications base stations.
