Product Details:
|
| Nominal Capacity: | 206Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | 0.31mΩ ± 0.05 mΩ | Operating Votage: | 2.50V~3.65V |
| Dimension: | 218.2*200.7*35.9 | Battery Weight: | 3500 g ± 105 g |
Intelligent factory design, high-performance consistency.
Square aluminum shell structure, high precision explosion-proof valve, and high safety performance.
Low internal resistance, high discharge rate, and stable discharge platform.
Long cycle life, capacity retention rate over 80% after 4000 cycles at 1C/1C.
Green environmental protection
Nominal voltage: 3.2V
Standard capacity: 206Ah

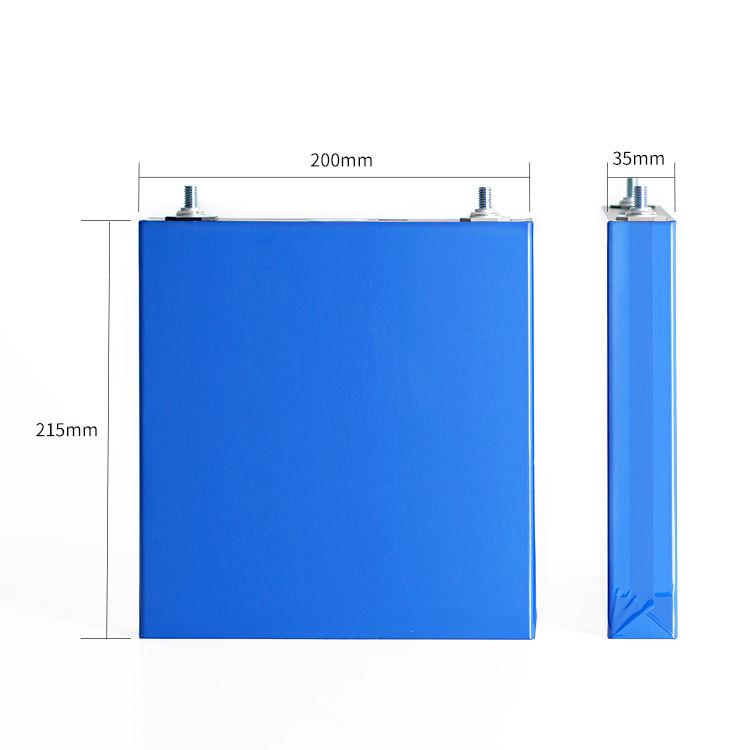

Battery size (Not including the studs):
Height: 218.2 mm ± 0.5 mm
Length: 200.7 mm ± 0.5 mm
Thickness: 35.9 mm ± 0.5 mm
Center distance of pole: 150.0 mm ± 0.3 mm
Weight: 3500 g ± 105 g
Charge voltage: 3.65V
Discharge cut-off voltage: 2.5V (T> 0℃); 2.0V (T＜0℃)
Internal resistance: 0.31mΩ ± 0.05 mΩ
Standard charge current: 0.5C
Max. continuous charge current: 1C
Max instantaneous charge current: 2C
Standard discharge current: 0.5C
Max continuous discharge current: 1C
Max instantaneous discharge current: 3C
Charge Temperature: -10℃~65℃
Discharge Temperature: -35℃~65℃
Cycle life: 4000+ cycles, 80% SOH, 25℃
Passenger Car Solutions, Commercial Vehicle Solutions, Engineered Power Solutions
