Product Details:
|
| Nominal Capacity: | 50AH | Nominal Voltage: | 3.2v |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | 2.50V~3.65V | |
| Dimension: | 100(H)*148(W)*39.7(T) | Battery Weight: | 1060±50g |

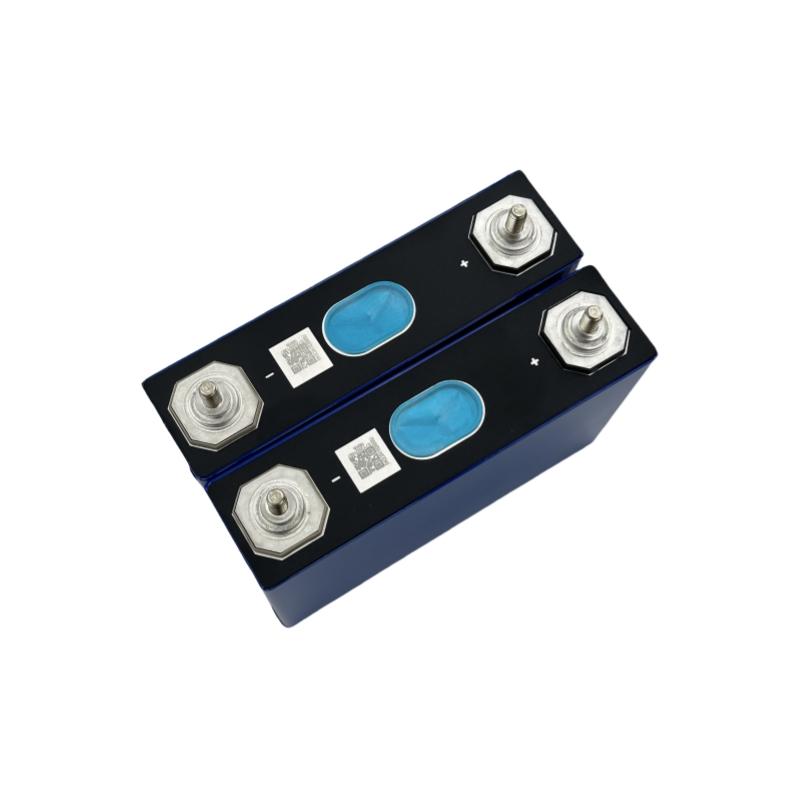

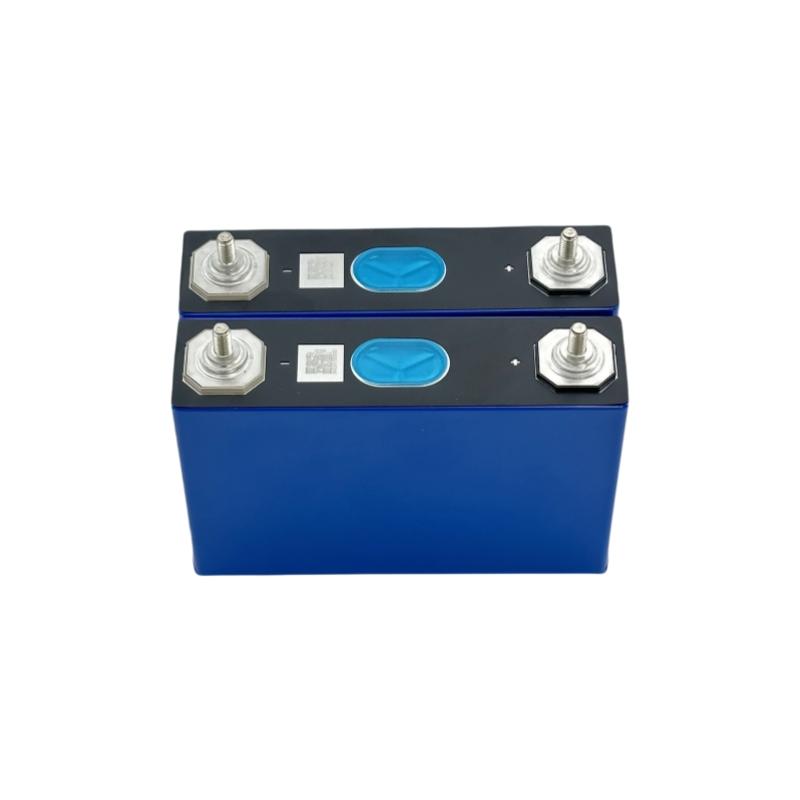

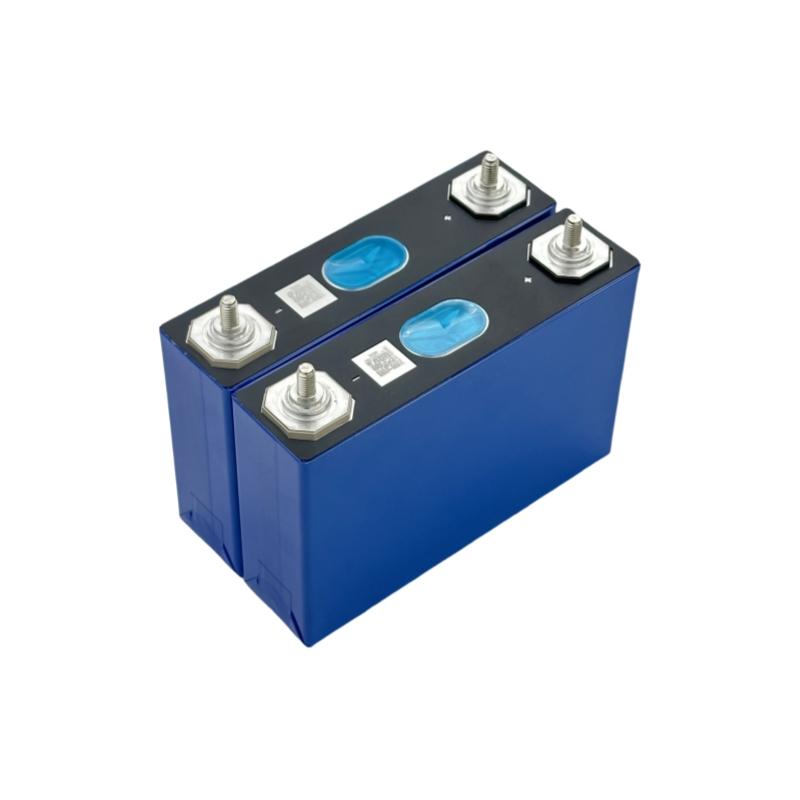

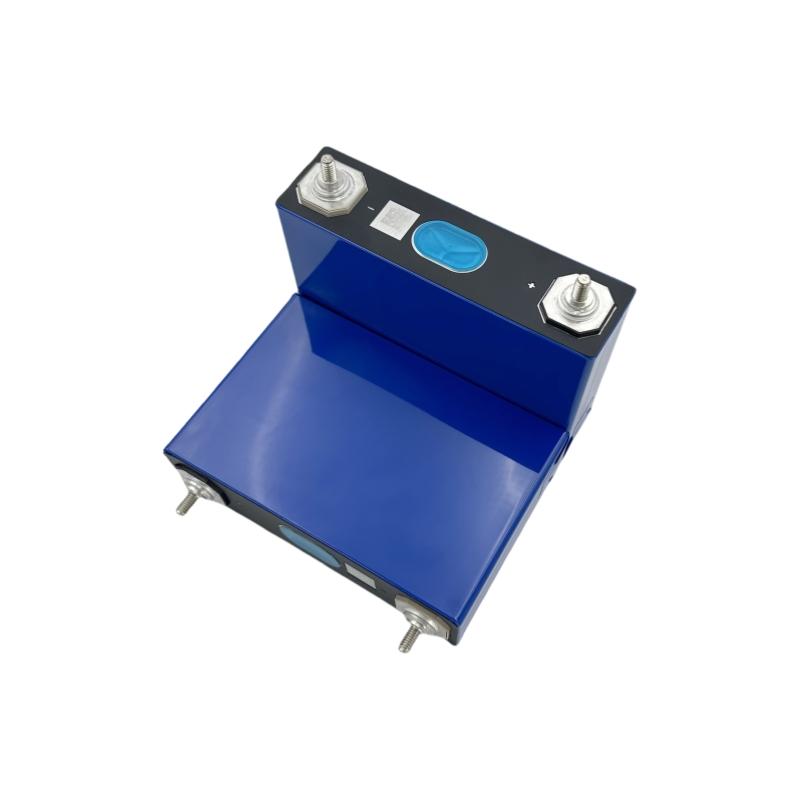

Brand new Grade A quality EVE LF50L 50ah Lifepo4 prismatic cells , perfectly flat without bulge, with excellent voltage and impedance.
Item | Specifications |
Battery Type | LFP |
Rated Capacity | 50Ah; 0.5C 25℃±2℃ 2.5-3.65V |
Rated Energy | 160Wh; 0.5C 25℃±2℃ 2.5-3.65V |
Nominal Voltage | 3.2V; 0.5C 25℃±2℃ 2.5-3.65V |
ACR | ≤0.5mΩ; AC 1kHz 25%SOC |
Weight | 1060±50 g |
Charging Cut-off Voltage | 3.65V |
Discharging Cut-off Voltag | 2.5 (0℃<T≤65℃) 2.0 (-20℃<T≤0℃) |
Standard Charging/Discharging Current | 0.5C/0.5C; 25℃±2℃ |
Maximum continuous charging/discharging current | 1C; 25℃±2℃ |
Cycling Performance | 5000 Cycles 0.5C/0.5C; 25℃ Standard Cycle 2000 Cycles 0.5C/0.5C; 45℃ Standard Cycle |
Operation Temperature | 0~65℃; charge -20~65℃; discharge |
Energy Efficiency | 25℃, Energy Efficiency |
Dimension | Terminal Height(H): 100.2±0.5mm Shoulder Height(h): 97.6±0.5mm Width (L): 148.6±0.8mm Thickness(T): 39.7±0.5mm (200kgf; Delivery SOC) |
1、It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
2、Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
3、Do not short connect or install the battery with incorrect polarity at any time.
4、Do not mix up with cells from different models or manufacturers.
5、Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
6、Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
7、Please wear protective devices such as rubber gloves when operating the battery.
8、Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
