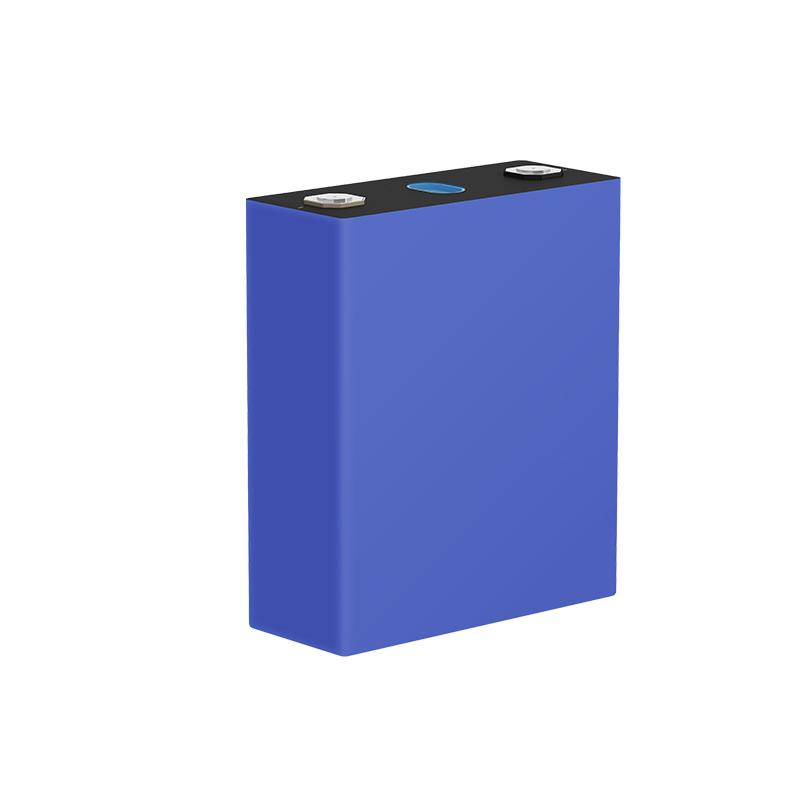

EVE MB31 3.2V 314Ah Prismatic LiFePO4 battery cell Grade A
|
Product Details:
|
| Nominal Capacity: | 314Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 207.2*173.7*71.7mm | Battery Weight: | 5.6kg |
Product Description
EVE MB31 3.2V 314Ah Prismatic LiFePO4 battery cell Grade A
Product Features
Automated: automated production/Prodcut consistency
Ultra-Safe: Explosion-proof / No leakage
Stable: Low IR / High CRD/ Discharge Steadily
Customized: Customer Demand Customization
Super Long: Ultra-long life cycle
Environmentally Friendly: Passed environmental/system certification
Specification：
Specification Parameters | |
Nominal Capacity | 314Ah |
Nominal Voltage | 3.2V |
Initial IR | 0.1 8 mΩ ±0.05 mΩ |
Weight | 5 600 g ±300 g |
Charging Cut-off Voltage | 3.65 V |
Discharging Cut-off V oltage | 2.5 V T >0℃ 2.0 V T ≤0℃ |
Charging Temperature | 0~60℃ |
Discharging Temperature | - 30~60℃ |
Storage Temperature | 0~35℃ |
Model Name | MB31 |
Cycle Life | 8000 Cycles |
Standard Charging Power | 0.5P |
Standard Discharging Power | 0.5P |
Height(H) with terminal | 207.2 mm ±0.5 mm |
Height(h) without terminal | 204.6 mm ±0.5 mm |
Length | 173.7 mm ±0.5 mm |
Thickness | 71.7 mm ±0.8 mm |
Long Life Cycle
Ultra-Safe
Square aluminum shell structure | Explosion-proof | No leakage
Stable
Low Internal Resistance√ | High Charge Rate√ | Discharge Steadily√
Applications
The prismatic lifepo4 battery is widely used in the following scenarios.Please consult online customer service for specific models
EVE MB30 3.2V 306Ah LiFePO4 Battery Brand New Grade A Prismatic Cells
