Product Details:
|
| Nominal Capacity: | 100Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.5mΩ | Operating Votage: | 2.5V-3.65V |
| Dimension: | 160*160*50.1mm | Battery Weight: | 1.98±0.05 kg |

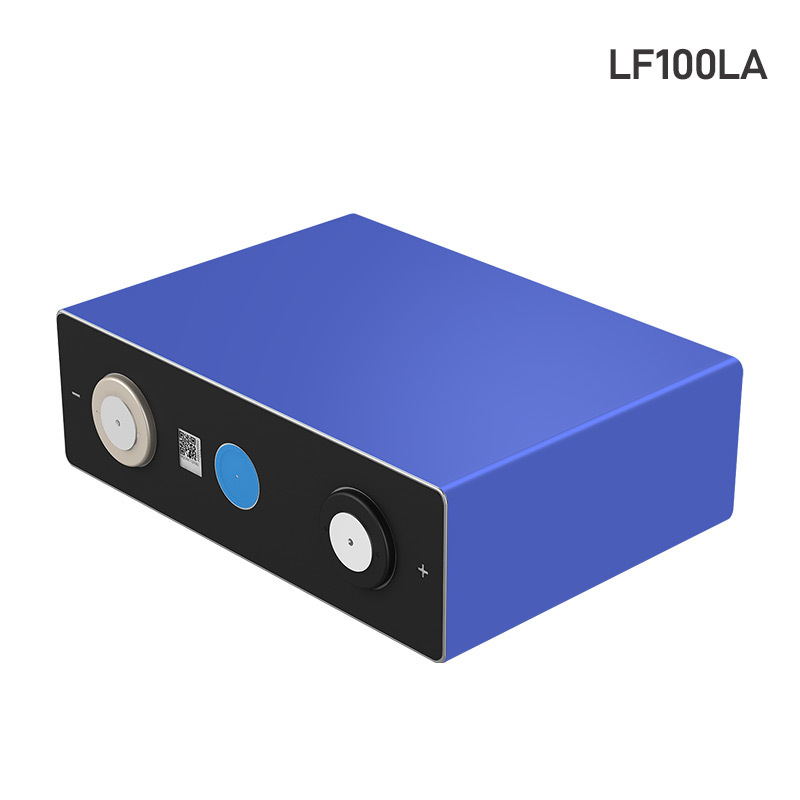

EVE Battery 3.2V 100Ah LF100LA lifepo4 battery cells
EVE battery is a type of rechargeable lithium-ion battery that is widely used in various applications, including electric vehicles (EVs), energy storage systems, and consumer electronics. EVE stands for "Energy Very Efficient," and the batteries are manufactured by EVE Energy Co., Ltd., a Chinese company founded in 2001.
EVE batteries are known for their high energy density, which allows them to store more energy per unit weight than other types of rechargeable batteries. They also have a longer lifespan compared to other types of rechargeable batteries, making them an ideal choice for high-capacity and long-lasting energy storage solutions. Additionally, EVE batteries can be charged quickly and have a low self-discharge rate, meaning they retain their charge for longer periods when not in use.
The features and benefits of EVE batteries make them an excellent choice for anyone looking for reliable and long-lasting energy storage solutions for their EVs, homes, or any other application requiring high-capacity and fast-charging rechargeable battery technology.
Details：
Parameters：
# | Item | Parameter | Remark | |
1 | Nominal Capacity | 100.0 Ah |
(25±2) ℃，Standard charge and discharge | |
2 | Typical Voltage | 3.2V | ||
3 | AC Impedance Resistance(1KHz) | ≤0.5mΩ | ||
4 |
Standard charge and discharge | Charge / discharge current | 0.5C/0.5C |
(25±2)℃ |
Cut off voltage of charge / discharge | 3.65V/2.5V | |||
5 |
Maximum charge / discharge current | Continuous charge / discharge | 1C/1C |
According to continuous / pulse charge and discharge ammeters |
Pulse charge / discharge (30s) | 2C/2C | |||
6 | Recommended scope of SOC | 10%～90% | N.A. | |
7 | Charging Temperature | 0℃～55℃ |
According to continuous / pulse charge and discharge ammeters | |
8 |
Discharging Temperature |
-20℃～55℃ | ||
9 |
Storage temperature |
Short term (within 1 month) | -20℃～45℃ |
N.A. |
Long term (within 1 year) | 0℃～35℃ | |||
10 |
Storage humidity range |
＜95% | ||
11 |
Self-discharge rate per month |
≤3%/month | Temperature：(25±2)℃， Storage scope of SOC： 30%~50%SOC | |
12 |
Dimension | Hem width | 160 ±0.8mm |
Refer to Appendix I |
13 | Width of non hem | 160 ±0.5mm | ||
14 | Thickness(30% SOC 200kgf) | 50.1 ±0.5mm | ||
15 | High（total） | 118.5 ±0.5mm | ||
16 | High（subject） | 115.7 ±0.5mm | ||
17 | Tabs Distance | 97.0±0.3mm | ||
18 |
Battery weight |
1.98±0.05 kg | ||
19 | Encapsulation mode | U-shaped capsule | ||
Test conditions：
Test environment conditions
Temperature：25±2℃
Relative humidity (RH): 15~90% Atmospheric condition: 86KPa~106KPa
Standard Charge
The standard charge means charging the cell with charge current 0.5C(A) and constant voltage 3.65V at (25±2)℃, 0.05C(A )cutoff.
Standard Discharge
The standard discharge means discharging the cell with discharge current 0.5C(A) and cutoff voltage 2.5V at (25±2) ℃.
