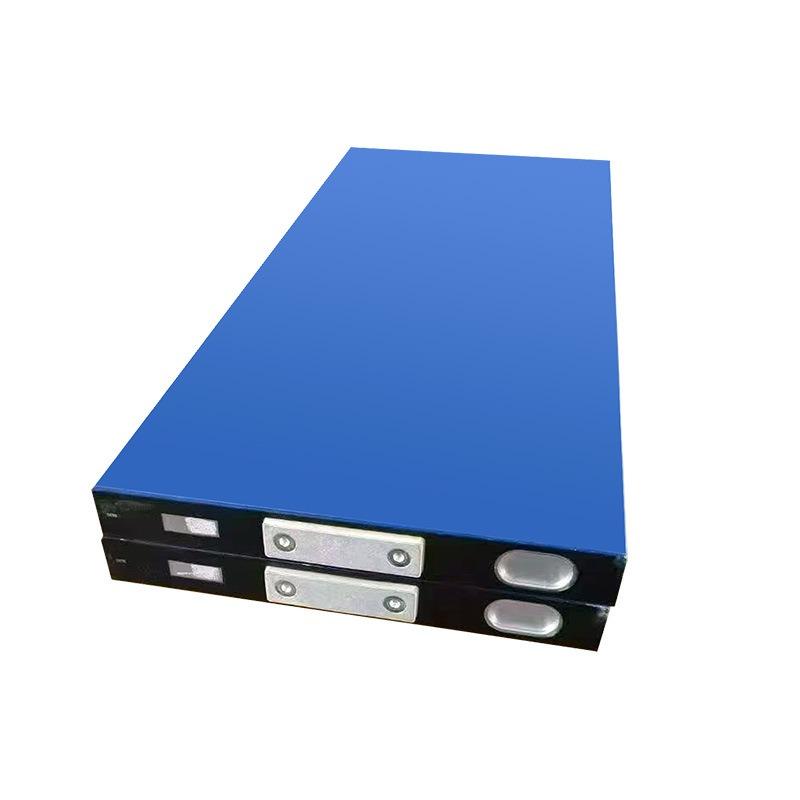

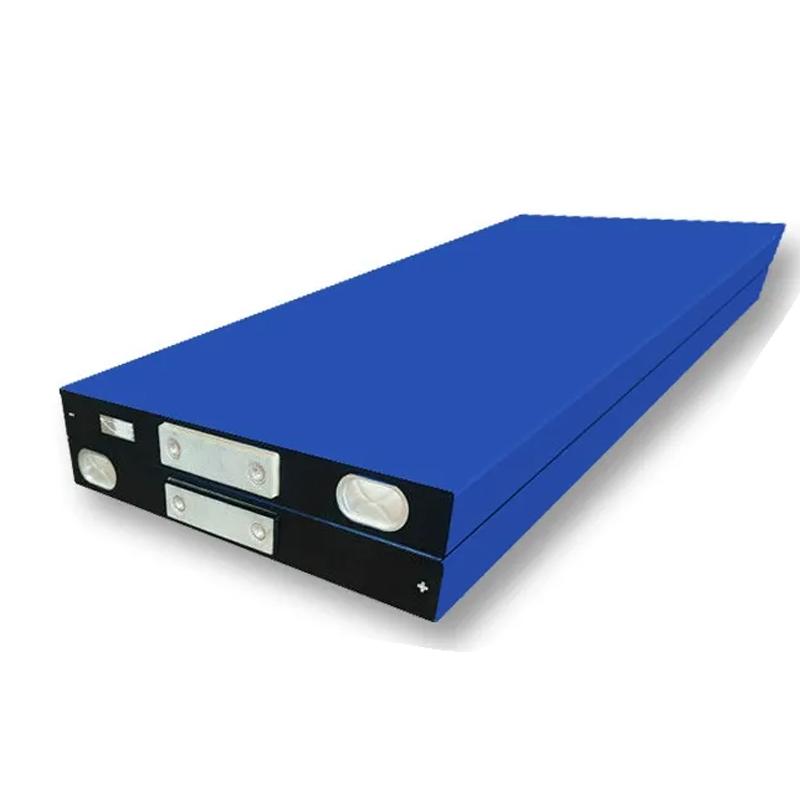

3.2V 350ah lithium lifepo4 lfp short blade battery cell

Contact Now

Product Details:

Place of Origin:	China
Brand Name:
Certification:	CE
Model Number:	L500-350

Payment & Shipping Terms:

Retail Price:
Wholesale Price:	Negotiable
Packaging Details:	cartons or plywoods
Payment Terms:	T/T

Contact Now

Nominal Capacity:	350ah	Nominal Voltage:	3.2V
Internal Impedence:		Operating Votage:
Dimension:	26mm216mm500mm	Battery Weight:

Product Description

Single cell energy reaches 1120Wh with over 11000 charge cycles. Adopting short-blade stacking craft, it delivers superior heat dissipation, even temperature distribution and low temperature rise.

Features

Energy density: >171 Wh/Kg
Efficiency: >94%
Ultimate safety: Adopts Staking technology
High cycle life: Up to 8000 cycles

Specifications

L500-350Ah Blade Battery Specification
Basic Electrical Parameters
Cell Chemistry	LFP Lithium Iron Phosphate (3rd Generation Fly-stacking Thermal Composite Lamination Process)
Rated Voltage	3.2V
Nominal Capacity	350Ah (at 25℃, 0.5C discharge to 2.5V)
Single Cell Energy	1120Wh
Operating Voltage Range	2.5V ~ 3.65V (2.0V lower limit for -20~0℃ low-temperature discharge)
1kHz AC Internal Resistance	≤0.2mΩ (new cell, 50% SOC, 25℃)
Gravimetric Energy Density	>171 Wh/kg
Volumetric Energy Density	400 Wh/L
Round-trip Efficiency	>94%
Dimensions & Weight

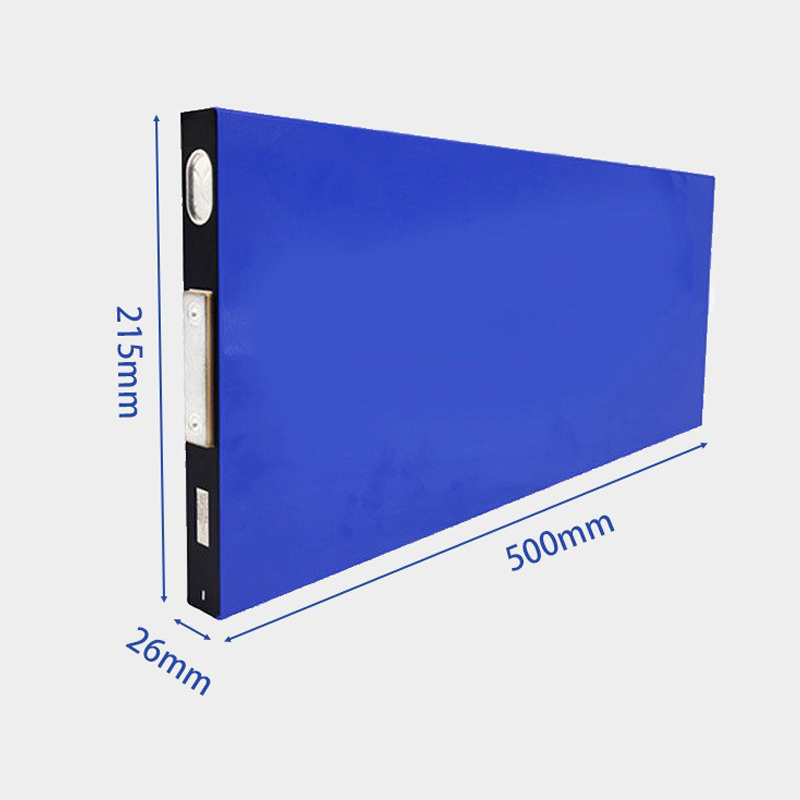

Cell Dimensions (Excluding Poles)	26mm (Thickness) × 216mm (Width) × 500mm (Length)
Single Cell Net Weight	6.21~6.6kg (standard value: 6.3kg)
Cycle Life & Safety Performance
Standard Cycle Life (25℃, 0.5C Charge/Discharge)	≥11000 cycles
Commercial Verified Cycle Life	≥8000 cycles
Design Limit Cycle Life	Up to 15000 cycles
Core Safety Technology	Staking technology; passed full penetration, extrusion, overcharge and hot box tests, no thermal runaway risk
Charging & Discharging Specifications
Standard Charging Mode	① Constant Current: 0.5C (175A) constant current charge to 3.65V ② Constant Voltage: 3.65V constant voltage, cut off when current drops to 0.02C (7A)
Standard Continuous Discharge	0.5C (175A)
Peak Short-term Discharge	≤1C (350A, duration ≤30s)
Operating Temperature Range
Charging Temperature	0℃ ~ 55℃
Discharging Temperature	-20℃ ~ 55℃
Long-term Storage Temperature	-10℃ ~ 45℃
