CATL Battery 3.2V 280Ah 1C New Grade A LiFePO4 Prismatic Cells

Product Details:
Place of Origin: China
Brand Name: CATL
Certification: CE
Model Number: /
Payment & Shipping Terms:
Retail Price: /
Wholesale Price: Negotiable
Packaging Details: cartons or plywoods
Payment Terms: T/T
Nominal Capacity: 280Ah Nominal Voltage: 3.2V
Internal Impedence: / Operating Votage: /
Dimension: 207*174*72 mm Battery Weight: Around 5.34kg

Product Description

CATL Battery 3.2V 280Ah 1C New Grade A LiFePO4 Prismatic Cells

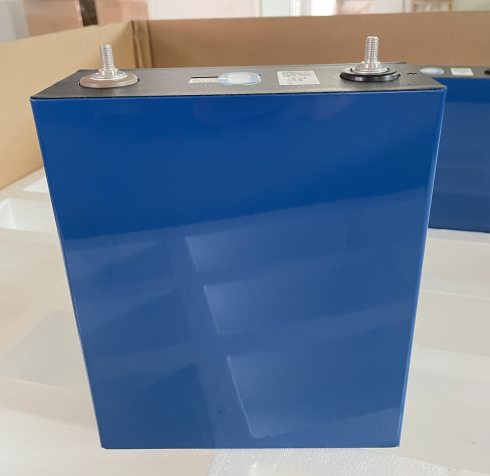

280Ah battery with screw.png


We have 150pcs CATL Battery 280Ah Lifepo4 batteries in stock right now, all of these battery studs are already soldered on and the connection tabs are included. If you need CATL batteries at present, please contact us, we will provide you with the fastest speed and best quality.If you need a larger quantity of CATL batteries, please contact us, and we will provide you with the best service.


catl 280ah 1.png


 catl 280ah 4.png     catl 280ah 5.png


Advantages:


High energy density: The CATL 280Ah battery has a high energy density, which means that it can store a large amount of energy in a relatively small space.

Long cycle life: The CATL 280Ah battery is designed to last for a long time, with a cycle life of up to 6,000 cycles.

Fast charging: The CATL 280Ah battery can be charged quickly, which makes it a good choice for applications where fast charging is important.

Modular design: The CATL 280Ah battery is designed to be modular, which means that it can be easily integrated into a larger energy storage system.


Parameters:



Item

Parameter

Nominal Capacity

280Ah

Nominal Voltage

3.2 V

Internal Resistance

≤0.18mΩ


Charging (CC-CV)

Continuous Charging Current

1C

Maximum Charging Current

3C

Charging Upper Limit Voltage

3.65V


Discharging

Continuous Discharging Current

1C

Maximum Discharging Current

3C

Discharging Cut-off Voltage

2.5V

Recommended SOC Usage Window

SOC: 10%~90%

Operation Thermal Ambient

Charging

0°C ~ 65°C

Discharging

-35°C ~ 65°C

Storage Thermal Ambient

Short-term (within 1 month)

-20°C ~ 65°C

Long term (within 1 year)

-20°C ~ 55°C

Storage Humidity

< 70%

Battery Weight

Around 5.34kg

Shell Material

Aluminum

Cell Dimensions

207*174*72 mm
