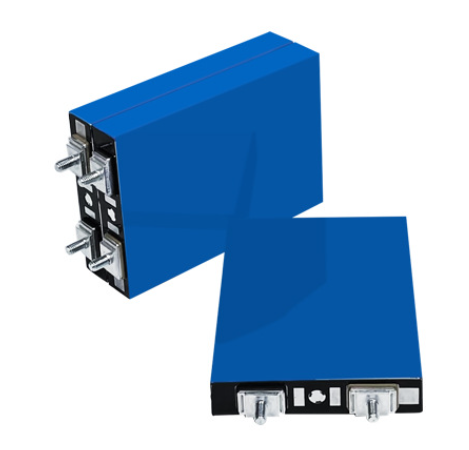

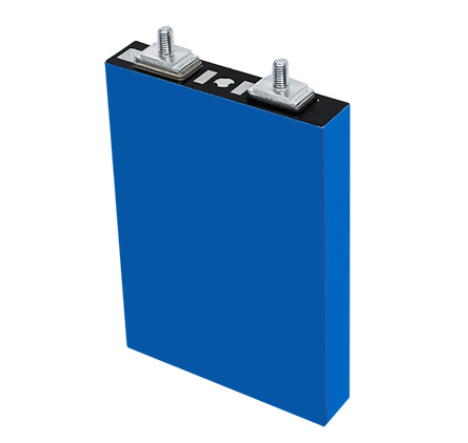

Gotion 3.2V 30Ah LiFePO4 Prismatic Battery Cell
|
Product Details:
|
| Nominal Capacity: | 30Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 21*100*145 mm | Battery Weight: | 610g |
Product Description
Gotion 3.2V 30Ah LiFePO4 Prismatic Battery Cell
Features:
Widely used in Energy Storage System, EV, UPS and so on.
Excellent performance
High stability
Long life time
Specifications:
No | Item | Parameter Specification | |
1 | Battery Module | 3.2V 30Ah | |
2 | Nominal Capacity | 30Ah | |
3 | Nominal Voltage | 3.2 V | |
4 | Internal Resistance | ≤ 0.5mΩ | |
5 |
Charging(CC-CV) | Continuous Charging Current | 1C |
Maximum Charging Current | 3C | ||
Charging Upper Limit Voltage | 3.65V | ||
6 |
Discharging | Continuous Discharging Current | 1C |
Maximum Discharging Current | 3C | ||
Discharging Cut-off Voltage | 2.5V | ||
7 | Recommended SOC Usage Window | SOC: 10%~90% | |
8 | Operation Thermal Ambient | Charging | -5°C ~ 55°C |
Discharging | -30°C ~ 60°C | ||
9 | Optimum operating temperature | 10°C ~ 35°C | |
10 | Storage Humidity | < 70% | |
11 | Battery Weight | 610g | |
12 | Energy Density | ≥175Wh/kg | |
13 | Shell Material | Aluminum | |
14 | Cell Dimensions | 21*100*145 mm | |
