Product Details:
|
| Nominal Capacity: | 135.5ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.65mΩ | Operating Votage: | 2.0~3.65 V |
| Dimension: | L(580.0±0.65)×W(120.0±0.35)×W(15.5±0.4)mm | Battery Weight: | 2350±35 g |
High energy density: Blade battery design, higher energy density, longer driving range
Long cycle life: withstand more charge and discharge cycles, life can reach thousands of times
High safety: Good thermal and chemical stability, even in extreme cases, there is less risk of combustion and explosion.
Good temperature adaptability: It can adapt to a wide range of temperatures and can provide stable power output under a wide range of environmental conditions.
Fast charging capability: The CL33 battery has a fast charging speed and can be charged in a short time to improve the charging efficiency of electric vehicles.
Environmental protection: lithium iron phosphate battery does not contain harmful heavy metal materials, in line with environmental requirements
Parameter | Specification |
Nominal Capacity | ≥134.5 Ah 25℃, 135.5 A(1C) DC to 2.0V ≥135.5 Ah 25℃, 45.17 A(1/3C) DC to 2.0V |
Energy | ≥420.99 Wh 25℃, 135.5 A(1C) DC to 2.0V ≥434.96 Wh 25℃, 45.17 A(1/3C) DC to 2.0V |
Specific Energy | ≥179.14 Wh/Kg 25℃, 135.5 A(1C) DC to 2.0V ≥185.08 Wh/Kg 25℃, 45.17 A(1/3C) DC to 2.0V |
Operating Voltage | 2.0 ~ 3.65 V (-30℃<T≤55℃) |
ACR(1KHz) | ≤0.65mΩ (25℃, BOL, 21%SOC) |
Outgoing Voltage | 3.265-3.270V (25℃, BOL, 21%SOC ) |
Outgoing Capacity | ≥135.5 Ah (25℃, 43.67 A(1/3C) DC to 2.0V) |
Operating Temperature (Charge) | -20℃ ~ 55℃ |
Operating Temperature (Discharge) | -30℃ ~ 55℃ |
Cycle Life | ≥2500 (25℃, Step charge/1C, 3-100%SOC，80%SOH) |
Discharge Power @ 25℃ | ≥2547W (25± 3℃, 50%SOC, 10 s) |
Discharge Power Density @25℃ | ≥1000W/Kg (25± 3℃, 50%SOC, 10 s) |
Recommended SOC Range | 3% - 100% |
Cell Weight | 2350±35 g |

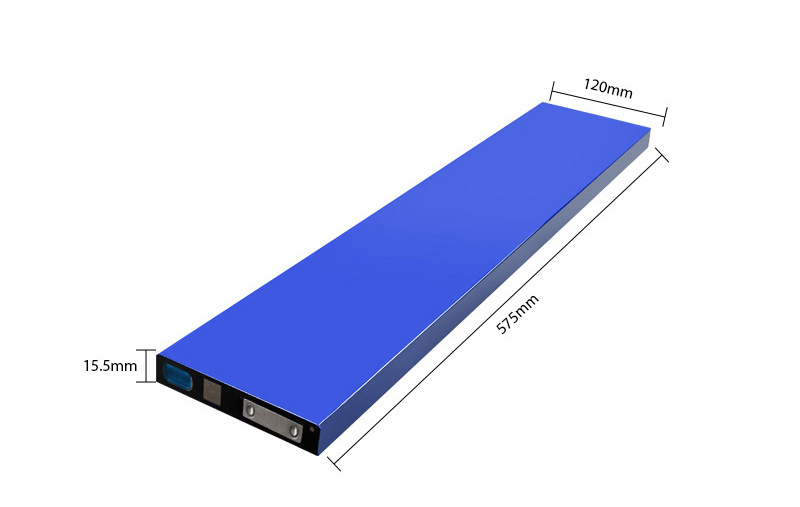

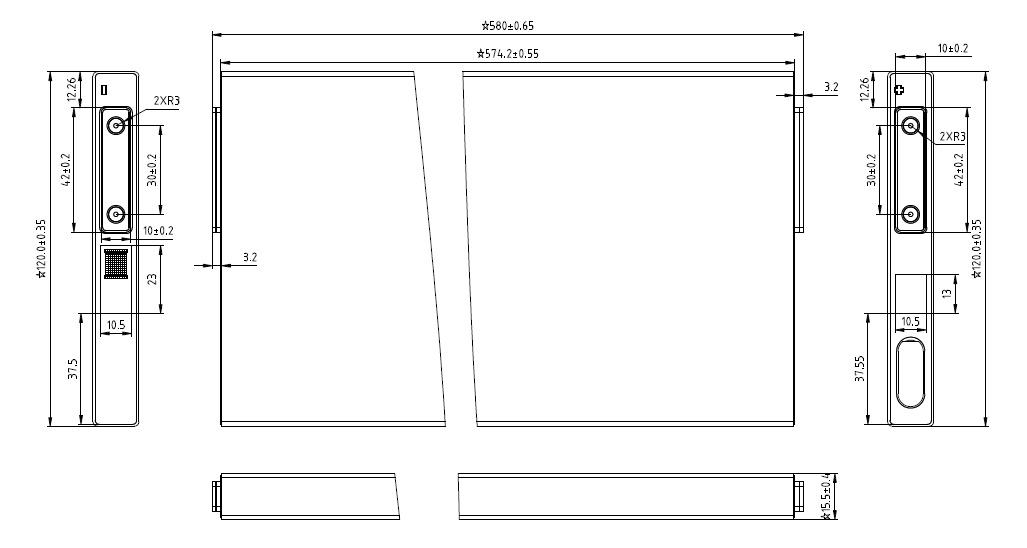

Cell Dimension
| L(580.0±0.65)×W(120.0±0.35)×W(15.5±0.4)mm |
Passenger cars: mainly pure electric vehicles and plug-in hybrid electric vehicles (PHEV), to provide power for the vehicle, high energy density makes the vehicle mileage to improve, long cycle life to reduce battery costs, improve the overall economy.
Commercial vehicles, such as commercial light trucks, their high energy density can meet the cargo needs of commercial vehicles, long cycle life can reduce operating costs and improve economic efficiency.
Autonomous vehicles: Provide a stable and reliable energy supply for autonomous vehicles, and its high safety performance ensures the safety of the autonomous driving process.
In addition, the CL33-135.5Ah Lifepo4 Blade Battery is also widely used in energy storage systems, offshore wind energy storage, smart grid, off-grid power systems, portable energy storage devices or backup power supplies (UPS).
