|Nominal Capacity:||210Ah||Nominal Voltage:||24V|
|Internal Impedence:||Operating Votage:||20V-29.2V|
|Dimension:||595*173*510mm||Battery Weight:||Approx 64.0 kg|

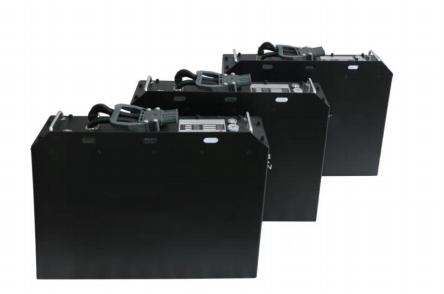

24V 210Ah lifepo4 battery pack 20Ah batteries for forklift
Discharge Cut-off Voltage
Limited Charge Voltage
Max Charge Continue Current
Max Discharge Continue Current
Maximum instantaneous discharge current
Approx 64.0 kg
Charge Temperature Range
Discharge Temperature Range
Less than 1 month
Less than 3 months
Storage over 3 months
Performance And Test Conditions ：
Standard Test Conditions
Test should be conducted with new batteries within one week after shipment from our factory and the battery
shall not be cycled more than five times before the test.
Statement 1): Unless otherwise specified, all tests stated in this Product Specification are conducted at
Temperature: 20±5℃(“Temperature Condition”)
Humidity: 45%~75%RH (“Humidity Condition”)
Statement 2): Throughout this specification, numeric criteria annotated by”*”means such criteria are only
applicable to fresh unused Product within 28 days from manufacture.
Products either have been used or stored for a period longer than 28 days by Customer and/or its customer
may exhibit an inferior numeric parameter than such criteria. Customer agrees that such occurrence does not
constitute nonconformance of specification.
Measuring Instrument or Apparatus ：
Dimension Measuring Instrument ：
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.02mm.
Voltage measurement ：
The voltage measurement shall be implemented by instruments with equal or more precision scale of 0.001V
Standard class specified in the national standard or more sensitive class. Total external Resistance including ammeter and wire is less than 0.01Ω .
The Impedance measurement shall be implemented by instruments with equal or more precision scale of 0.1m Ω .
Charge & Discharge Current
Standard Charge& Discharge Current :
Max. Charge Current:
0.5Cmin＝ 105A 29.2V (CC-CV) Cut off current ：0.02Cmin
Max. DisCharge Current:
Battery shall be discharged at a constant current of 0.5Cmin＝ 105A to 20V @ 23± 2℃ （
If no otherwise specified, the rest time between Charge and Discharge amount to 30min.
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect commercial value of battery.
