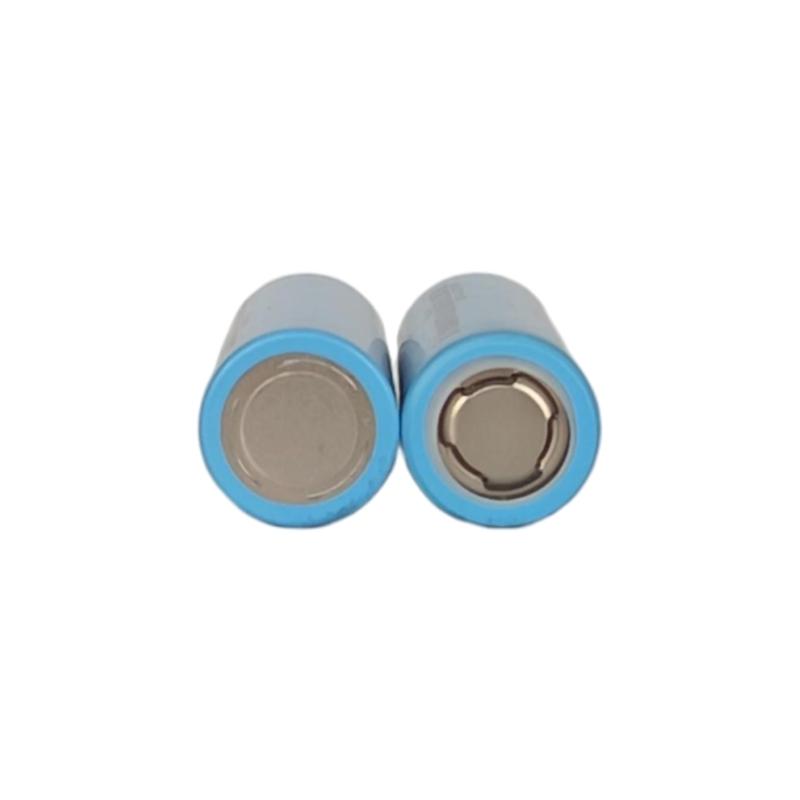

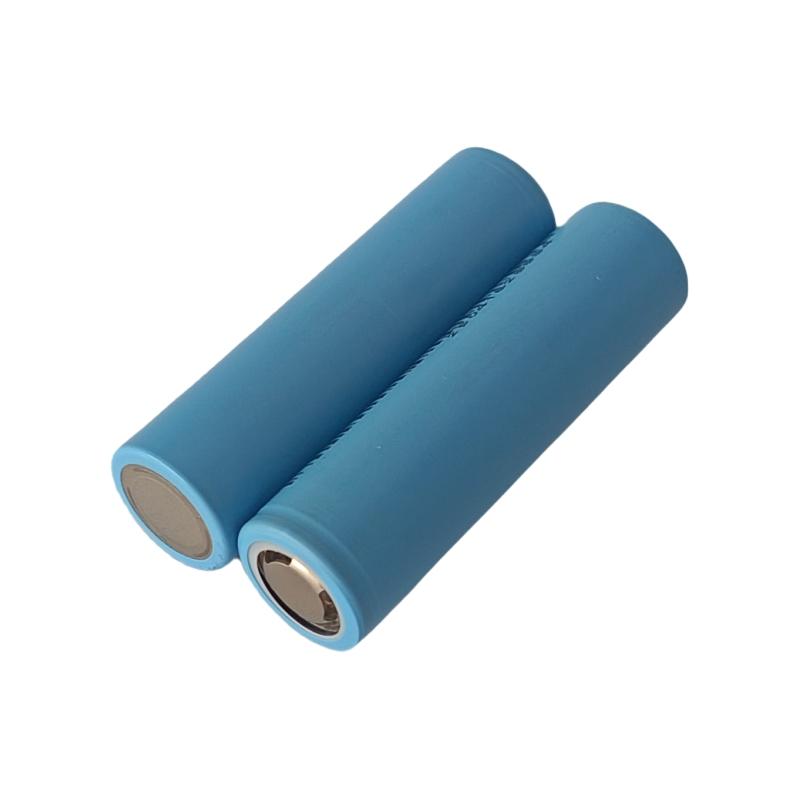

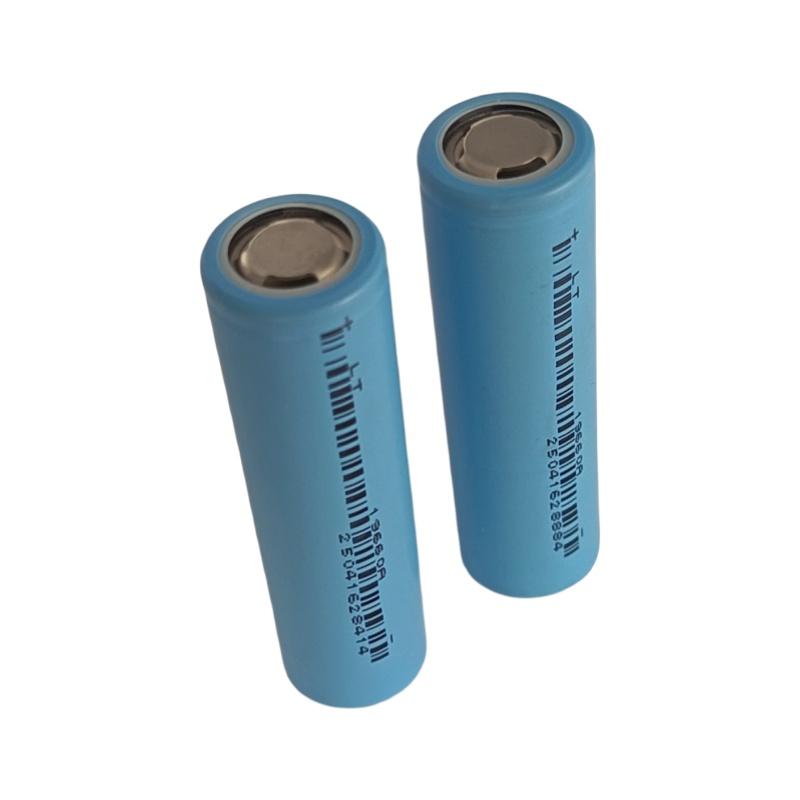

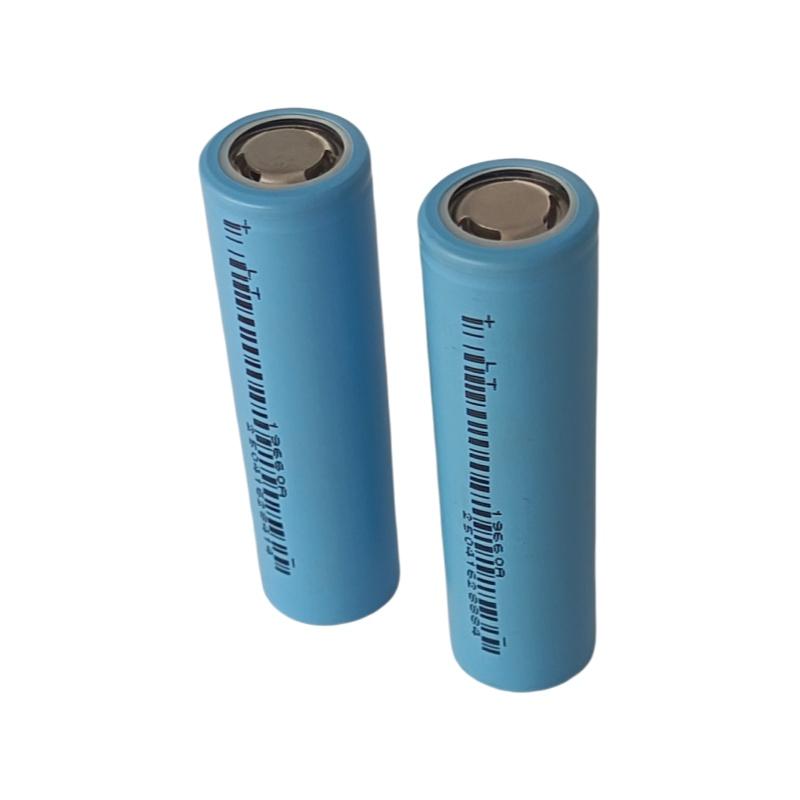

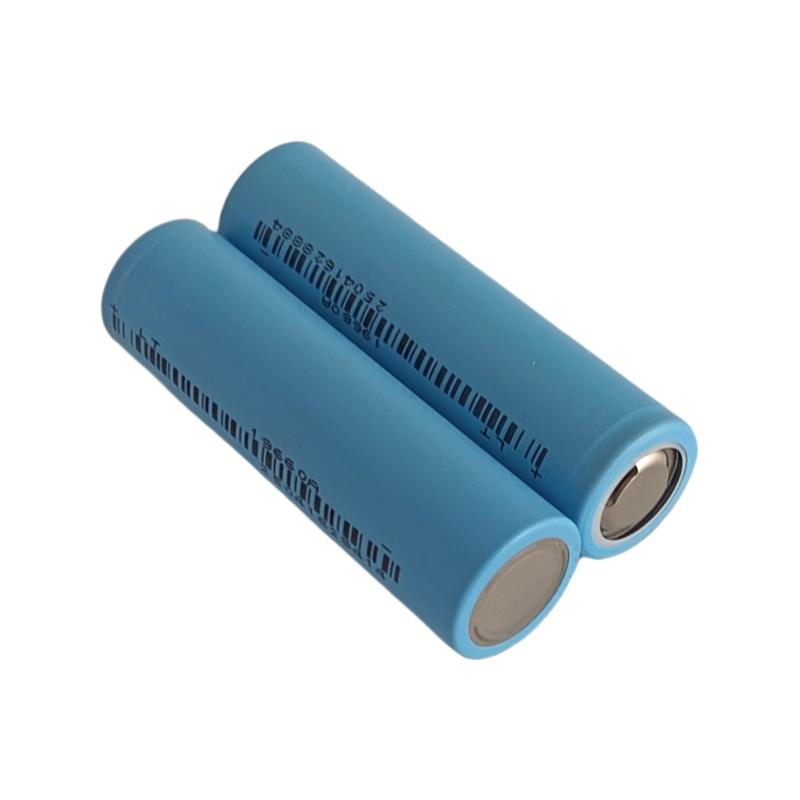

Ampace high rate 12C 3.6V 3000mah JP30 cylindrical 18650 lithium battery
|
Product Details:
|
| Nominal Capacity: | 3000mah | Nominal Voltage: | 3.6V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |
Product Description
The JP30 18650 lithium battery cell has achieved comprehensive leaps in various data indicators, including power output, pulse discharge capability, battery lifespan, charging speed, and low-temperature performance. JP30 supports 36A continuous discharge and 140A pulse discharge within 5s, ensuring smoother operations in steel cutting and concrete drilling. Its capacity has been increased by 20%, from 2.5Ah to 3.0Ah. In terms of longevity, the JP30 delivers over 600 cycles at 9A charge/30A discharge, three times longer than the traditional 18650 batteries. With 6A charging/20A discharge, it exceeds 1000 cycles, significantly lowering the battery’s which cost per use. The JP30 also charges to 80% in just 10 minutes, 60% faster than conventional batteries, which means that only 2 or 3 batteries are enough for outdoor working. JP30 extends the application limit to -40℃.
Specifications
| Item | Parameter |
|---|---|
| Model | JP30 |
| Manufacturer | Ampace |
| Nominal Capacity | 3000mAh |
| Nominal Voltage | 3.6V |
| Maximum Charge Voltage | 4.2V |
| Minimum Discharge Voltage | 2.5V |
| Continuous Discharge Current | 36A |
| Pulse Discharge (5 sec) | 140A |
| Recommended Charge Current | 6A |
| Max Fast Charge | 9A (80% in 10 minutes) |
| Typical Cycle Life (9A/30A) | 600+ cycles |
| Extended Cycle Life (6A/20A) | 1000+ cycles |
| Operating Temperature Range | -40°C to 75°C |
| Approximate Weight | 45g |
| Dimension | 18mm(D) * 65mm(H) |
| Chemistry | NMC (Lithium Nickel Manganese Cobalt) |
