Thundersky Winston 3.2v 100ah lifepo4 lithium phosphate cell

Contact Now

Product Details:

Place of Origin:	China
Brand Name:	Thundersky Winston
Certification:
Model Number:	TSWB-LFP100AH

Payment & Shipping Terms:

Retail Price:
Wholesale Price:	Negotiable
Packaging Details:	cartons or plywoods
Payment Terms:	T/T

Contact Now

Nominal Capacity:	100Ah	Nominal Voltage:	3.2V
Internal Impedence:	＜0.35mΩ	Operating Votage:	2.50V~3.65V
Dimension:	20513036	Battery Weight:	2000g

Product Description

Features

Winston Battery: the safest Lithium Technology

Performance

Long cycle life > 8000 cycles@70% DOD

High Density, high discharge current, high temperature range

Low weight, free maintenance, fast charging, environment friendly

Specification

Nominal Capacity	100Ah
Nominal Voltage	3.2V
Maximum cut-off voltage for charging	3.65V
Minimum cut-off voltage for discharge	2.0V temperature≤0℃ 2.5V temperature>0℃
Standard Charge/ Discharge Current	50A(0.5CA)
Internal Resistance	≤0.35mΩ
Cycle Life(70%DOD)	≥8000Times / 70% DOD
Operating Temperature	Charge: 0℃~60℃
	Discharge: -20℃~55℃
	Storage Humidity: ≤85%RH
Self-discharge Rate	≤3.5% Monthly
Weight	2kg±100g

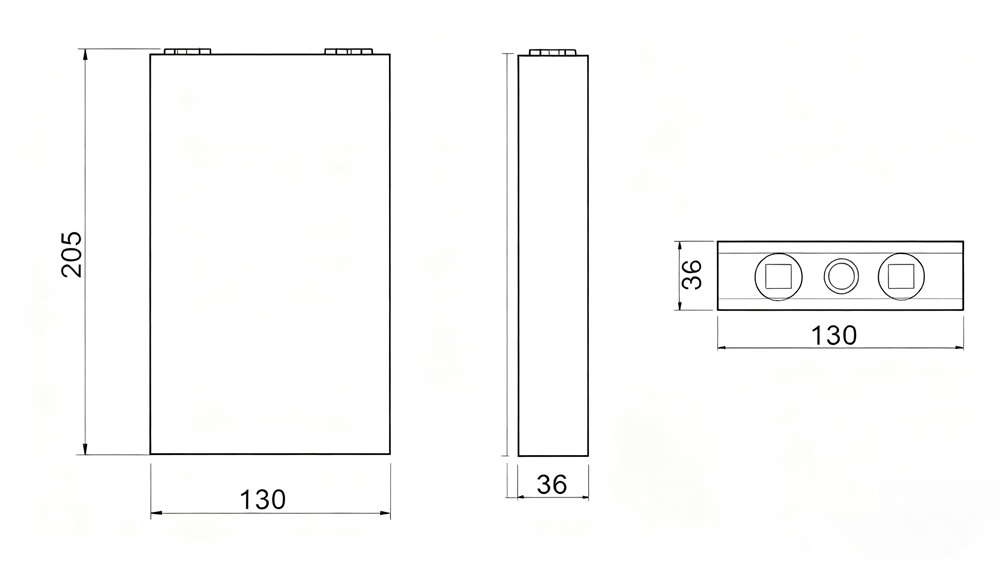

Battery dimension

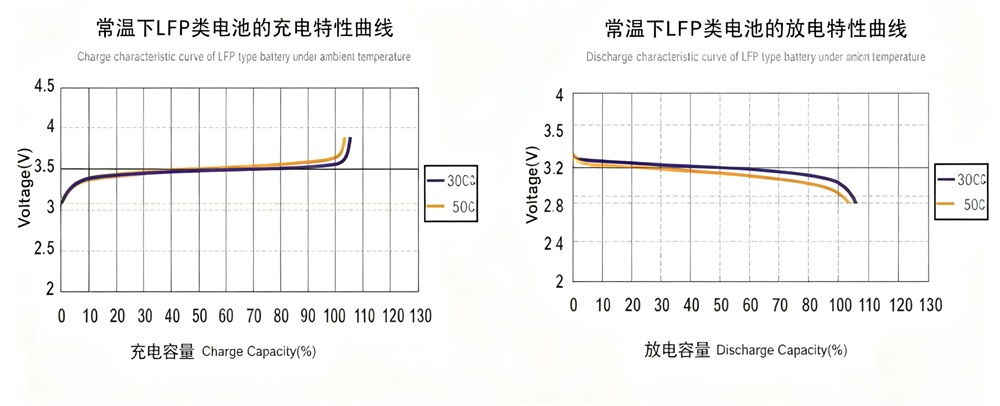

Performance Characteristics


Certifications
