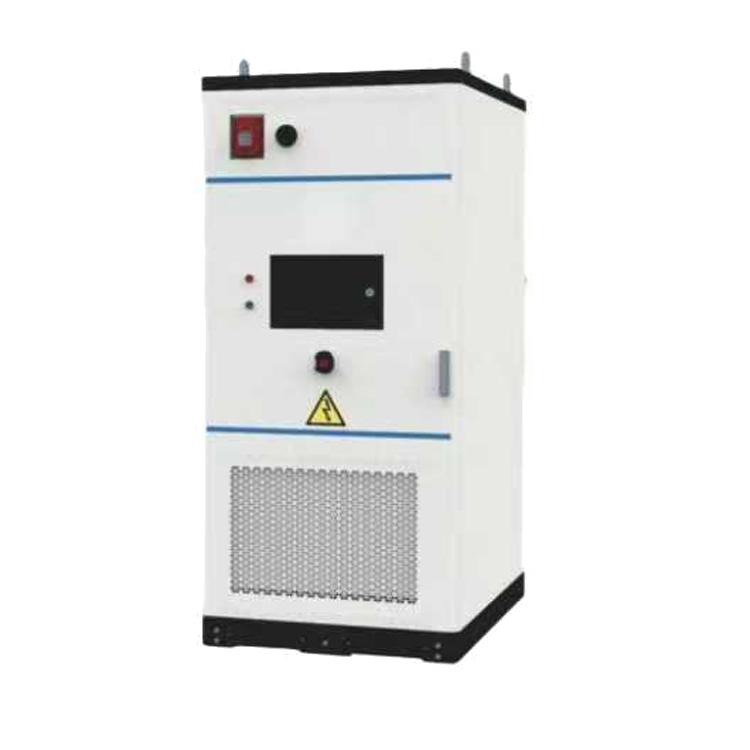

Winston Battery 125Kw 260Kwh Industrial Lithium LiFePo4 Battery Energy Storage Cabinet
|
Product Details:
|
| Nominal Capacity: | 260Kwh | Nominal Voltage: | |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |
Product Description
Product advantages
Safe & reliable
Large-capacity string-type cluster management for more flexible and reliable,
with a long cycle life of high-security cells to ensure the safe and reliable operation of the system
Smart & friendly
Real-time subsystem data monitoring and early warning
Intelligent visualisation EMS helps operation and maintenance to be simple, visualisation
Wide applications
Mobile emergency power station, V2V, V2H, microgrids, hybrid energy storage, etc.
TSW-BESS400KWH DATA SHEET
Items | Parameters |
Cell Model | 3.2V/313Ah |
Group method | 1P52S |
Rated capacity | 313Ah |
Rated voltage | DC166.4V |
Size(width*height*depth) | 1111.2*246.44*810mm |
Operating voltage range | DC130 - 189.8V |
Rated energy | 260kWh |
Insulation resistance | ＞100mΩ |
Charging and discharging ambient temperature | 25±5℃ |
Standard weight | 300kg |
System composition | 1P260S |
Rated voltage | 832Vdc |
Operating voltage range | 650V - 949V |
Rated power - charge | 125kW |
Rated power - discharge | 125kW |
IP protection rating | IPX4 |
Storage humidity | ≤85% |
Altitude | ≤2000m |
