Product Details:
|
| Nominal Capacity: | 313Ah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | ≤0.22(mΩ) | Operating Votage: | 2.50V~3.65V |

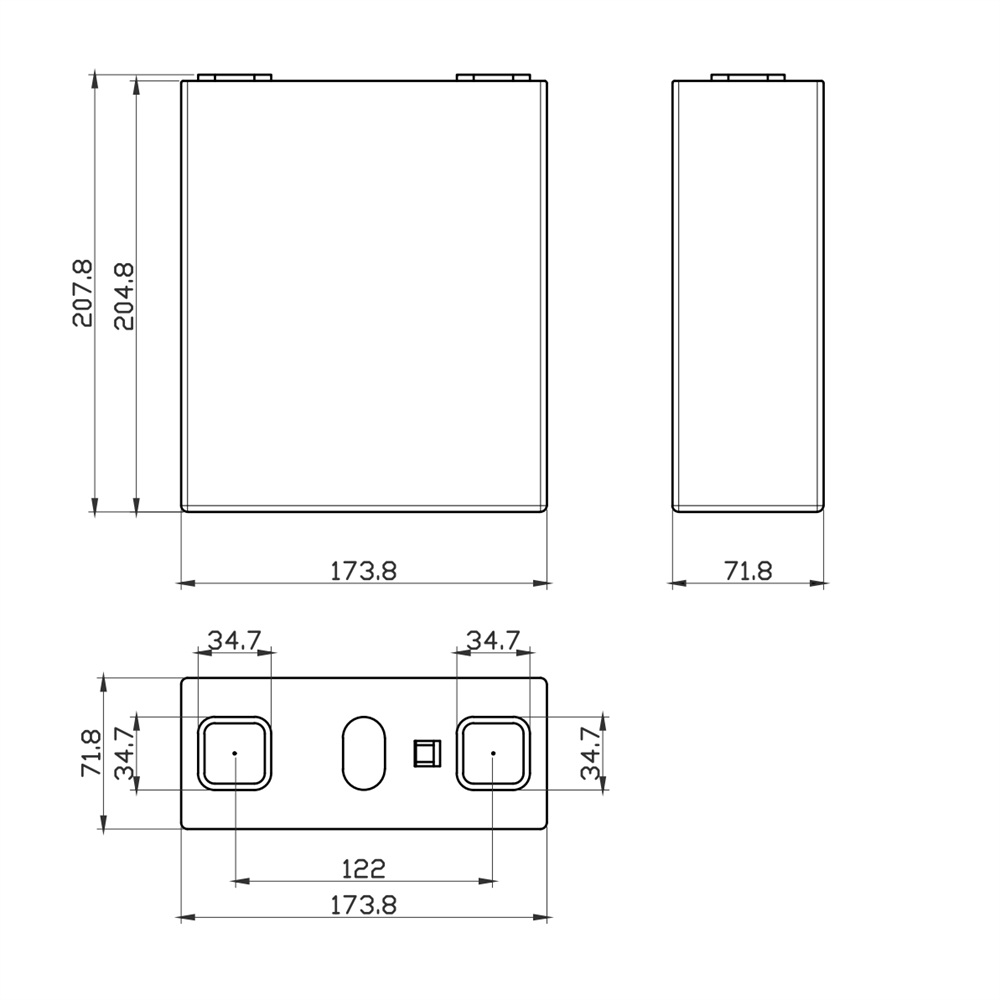

| Dimension: | 173.8*71.8*207.8mm | Battery Weight: | 5.55kg±75g |

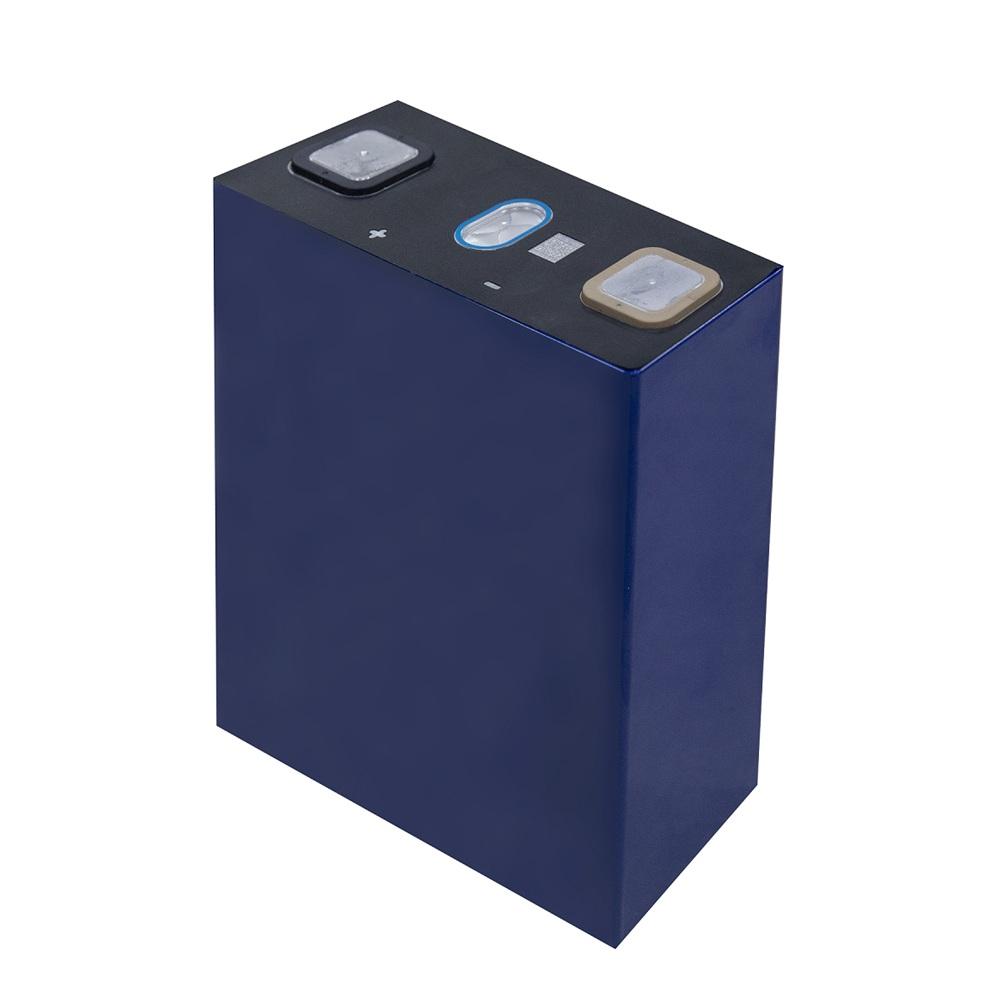

Thunder sky Winston battery is a leading Lithium Iron Phosphate (LiFePO4) battery producer providing high power lithium-ion battery,which is widely used in electric vehicle, solar power station,energy storage system and marine energy storage project. Evlithium is official dealer and technical support center providing local service in European North America and Australia. Evlithium is official leading partner of Thunder Sky Winston LiFePO4 batteries providing sales,technical support and shipping service.there are 40Ah-1000Ah high power Winston LiFePO4 battery for EV and energy storage application. the cycle life is over 8000 times at 70% DOD.
Nominal Capacity | 313Ah |
Nominal Voltage | 3.2V |
Maximum cut-off voltage for charging | 3.8V |
Minimum cut-off voltage for discharge | 2.0V temperature≤0℃ 2.5V temperature>0℃ |
Standard Charge/ Discharge Current | 156.5A(0.5CA) |
Internal Resistance | ≤0.22mΩ |
Energy density | ≥178Wh/kg ≥393Wh/L |
Cycle Life(70%DOD) | ≥8000Times |
Operating Temperature | Charge: 0℃~60℃ |
Discharge: -20℃~60℃ | |
Storage Humidity: ≤85%RH | |
Self-discharge Rate | ≤3.5% Monthly |
Weight | 5.55kg±75g |
