Product Details:
|
| Nominal Capacity: | Nominal Voltage: | ||
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |

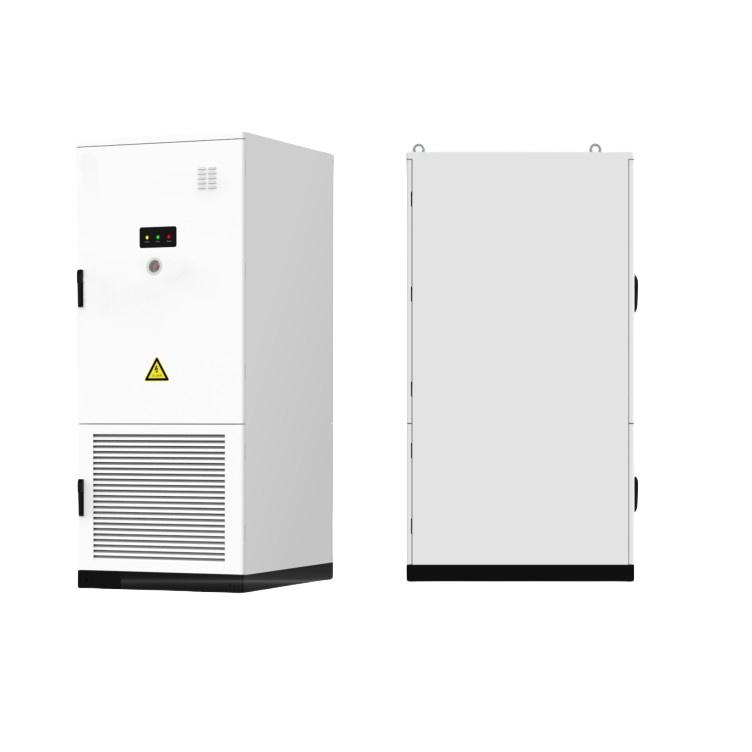

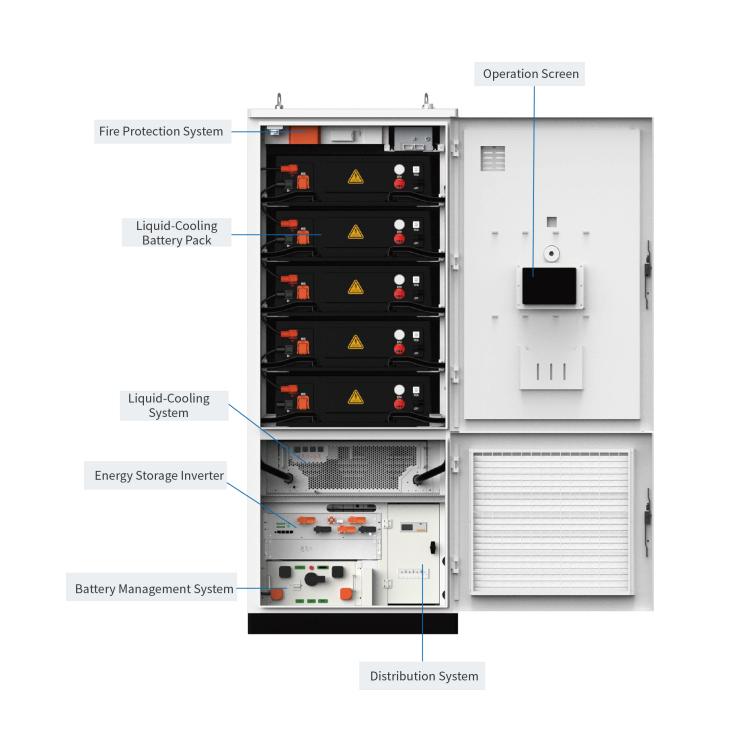

Equipped with an independent liquid cooling system, it achieves higher energy density and enhanced heat dissipation within a compact footprint, while offering advantages such as high efficiency, low noise, safety, reliability, and easy scalability. When integrated with PCS (Power Conversion System), it enables grid voltage regulation, three-phase imbalance mitigation, and harmonic suppression, thereby improving power quality. With a mere footprint of 1.3 square meters, the product features a modular design and high IP protection rating, allowing it to adapt to diverse application scenarios. It can also serve as a backup power source, helping enterprises lower your energy costs and increase green energy usage.
| Model | Energy Cuve 100 | |
| DC Parameter | ||
| Battery Type | LFP | |
| Combination Mode | 1P260S | |
| Rated Capacity | 314Ah | |
| Rated Energy | 261kWh | |
| Rated Voltage | 832V | |
| Rated Power | 125kW | |
| Operating Voltage Range | 650V～949V | |
| Charge/Discharge Current | 100A/100A | |
| Cooling Mode | Liquid Cooling | |
| Cycle Number | 8000 | |
| Fire Protection System | Perfluorohexanone + Aeroso+Water fire suppression | |
| Detector Type | Temperature / Smoke Sensor / Water Leak | |
| AC Parameter | ||
| Rated Output Power | 125kW | |
AC Overload Capability | 137.5kW | |
Wiring Method | Three-phase, four-wire | |
Allowed Grid Voltage | 380V/400V（-15%～＋15%） | |
Allowed Grid Frequency | 50Hz/60Hz±2.5Hz | |
Total Harmonic Distortion (THD) | ≤ 3% (at full load) | |
Power Factor | -0.99/-1~1 | |
DC Component in Current | ≤0.5% | |
Charge/Discharge Conversion Time | ＜100ms | |
Maximum Conversion Efficiency | ≥98％ | |
| System Parameter | ||
| Operating Environment | -20℃～50℃（Power derating 45℃+） | |

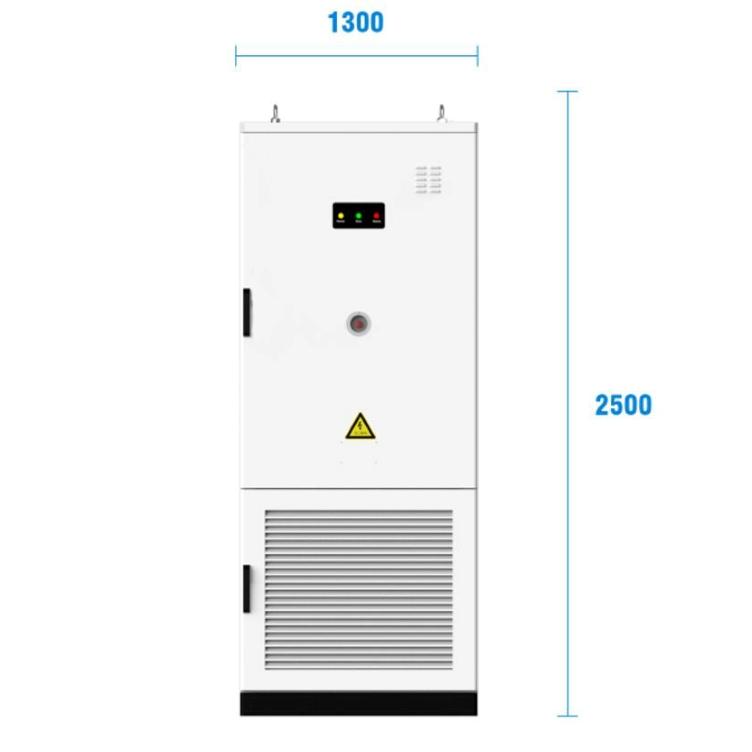

| Size (W*D*H mm) | 1000*1300*2500 | |
| Weight | About 2.6T | |
| Class Of Protection | IP54 | |
| Allowable Relative Humidity | 0-95% | |
| Allowable Altitude | ≤2000m（Power derating 2000m + ） | |
| Certification Standard | IEC62619、EN62477-1、IEC 63056 | |
Liquid-cooled thermal design
≤75dB low-noise operation
Safe and reliable
Partitioned isolation with active safety monitoring | PACK-level immersion fire protection
Cloud-edge coordination
24/7 real-time monitoring | Multiple operational modes
Modular design
Easy installation and commissioning | Flexible capacity expansion on demand
During periods of low electricity prices, use the grid to charge the devices. During periods of high electricity prices, discharge the batteries to power the load.
It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.
Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.
Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.
