Product Details:
|
| Nominal Capacity: | 350Ah | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |

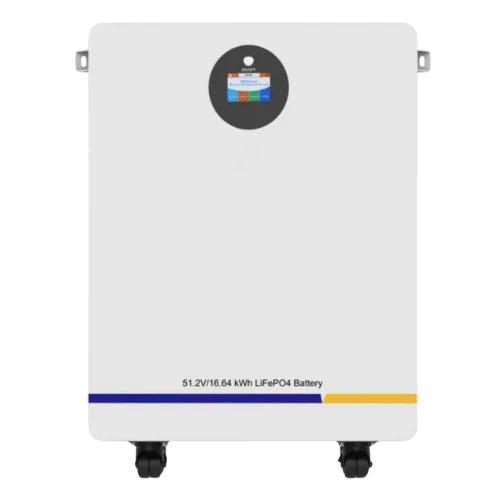

This 51.2V 350AH 17.92KWH residential energy storage system for house battery storage using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
A-Grade Cell Technology
Maintenance-free
Environmental Friendly
Wide Variety of Markets
Renewable Energy
Built-in Battery Management System
5-year Warranty
Items | Parameters |
Energy | 17.92kWh |
Installation Type | Wheel Mounted |
Battery Type - Chemistry | LiFePO4 |
Nominal Voltage | 51.2V |
Normal Capacity | 350Ah |
Dimensions(WHD) | 575720275mm |
Weight (Approx.) | 143KGS |
Terminal Type | Screw Terminal |
Case Material | SPCC |
BMS Build - in | Yes |
Internal Resistance | <25mΩ |
Efficiency – Round Trip | >95% |
Self Discharge Per Month | < 3 % |
Max Parallel Connectors | 16 Pcs |
Series Connections | Not Allowed |
Cycle Life | >6,000 cycles |
Discharge Temperature | -20°C to 60°C |
Charge Temperature | 0°C to 55°C |
Storage Temperature | -10°C to 30°C |
Bluetooth(App) | Optional |
LCD Screen | Touchable Display Screen |
Safety Certificate | IEC62619, CE, UN38.3 |
Operating Voltage Range | 43.2 - 58.4V |
Recommend Charge Voltage | 56±0.2V |
Max Charge Voltage | 58.4±0.2V |
Recommend Charge Current | 50A |
Max Continuous Charge Current | 200A |
Recommend Discharge Voltage | 44.8±0.2V |
Max Discharging Voltage | 43.2±0.2V |
Max Continuous Discharge Current | 200A |
Peak Discharge Current | 250A（100ms） |
Industrial Production
Stabilizes power supply for factory equipment, handles electricity fluctuations, and ensures continuous production line operation.
Power Grid Compatibility
Adapts to home power grids, stores electricity during off - peak hours and discharges at peak times to optimize electricity costs.
Small - scale Transportation
Provides energy storage for household golf carts, low - speed scooters, and other small transport.
Smart Home Appliances
Works with smart home systems to ensure stable power for smart appliances and home robots.
Emergency Power Supply
Supplies emergency power to critical home devices (e.g., refrigerators, lighting) during unexpected outages.
Photovoltaic (PV) Compatibility
Pairs with home solar panels for efficient PV energy storage and utilization.
UPS Backup
Acts as a home UPS backup, switching instantly during outages to protect sensitive electronics.
General Lighting
Provides stable energy storage for home lighting systems and outdoor garden lights.
