Product Details:
|
| Nominal Capacity: | Nominal Voltage: | ||
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |

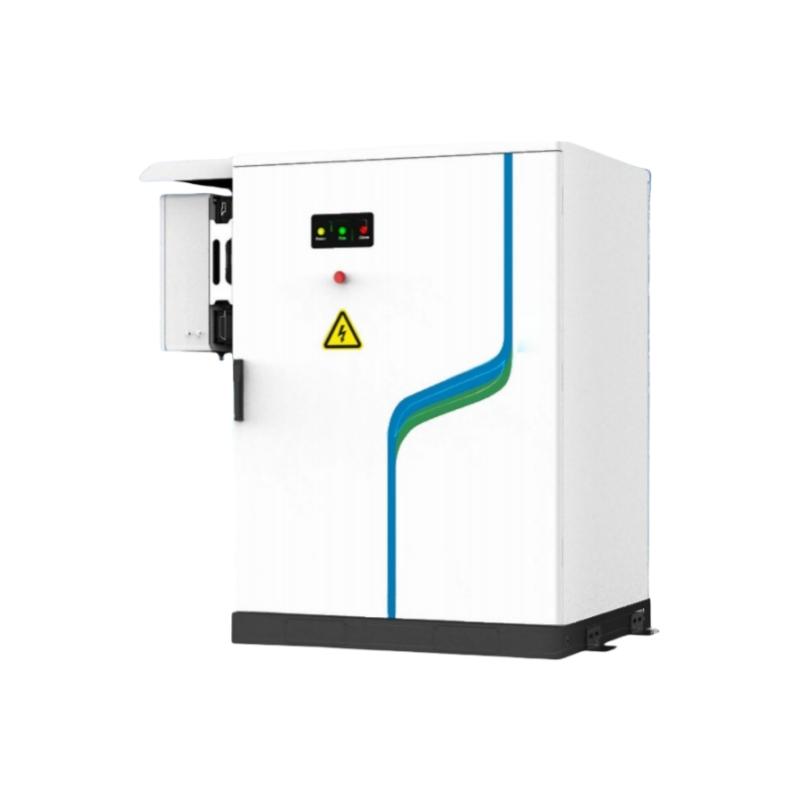

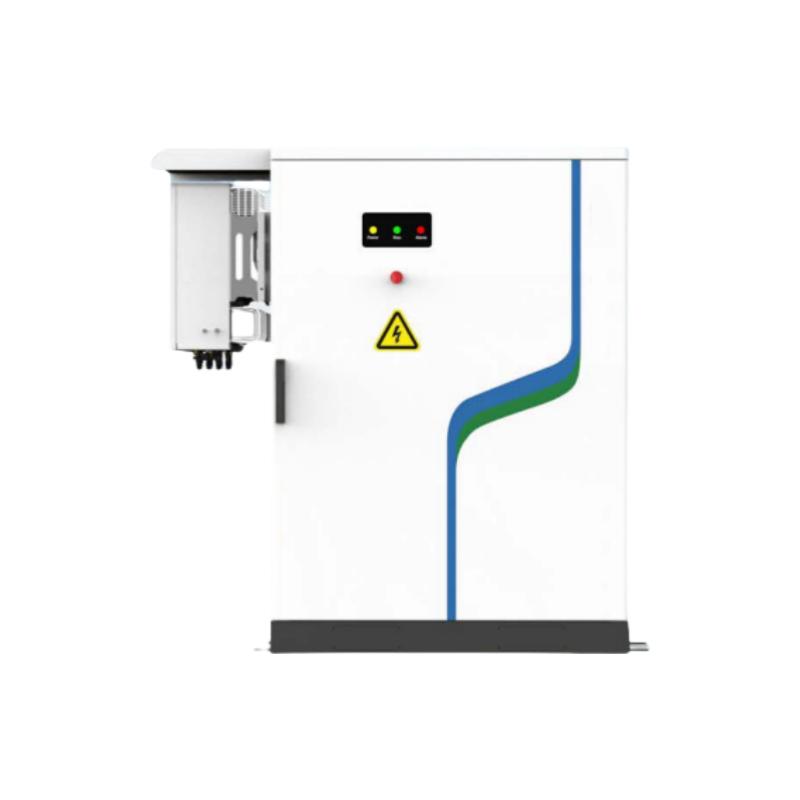

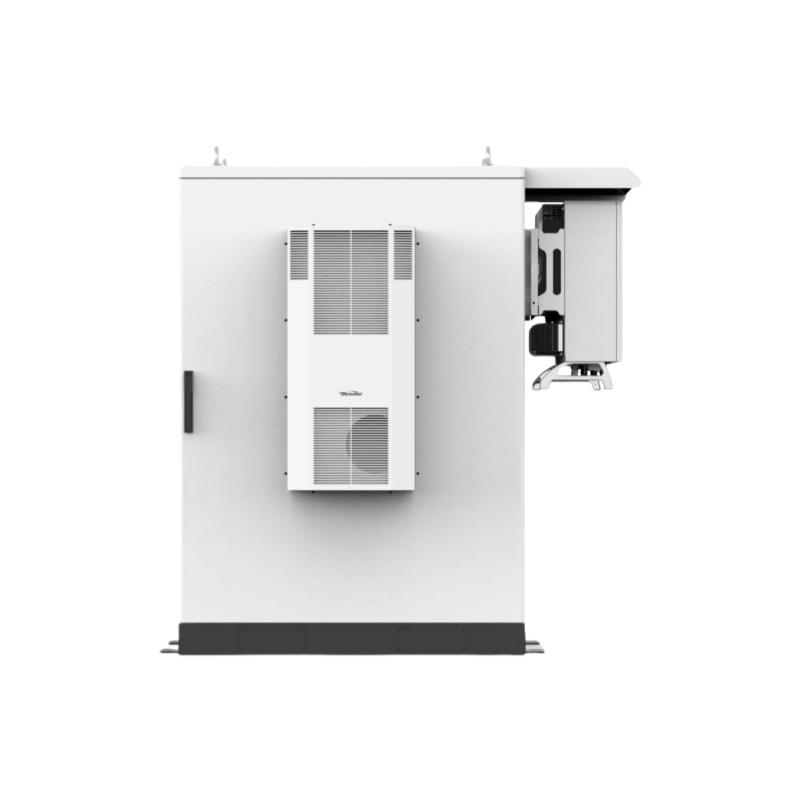

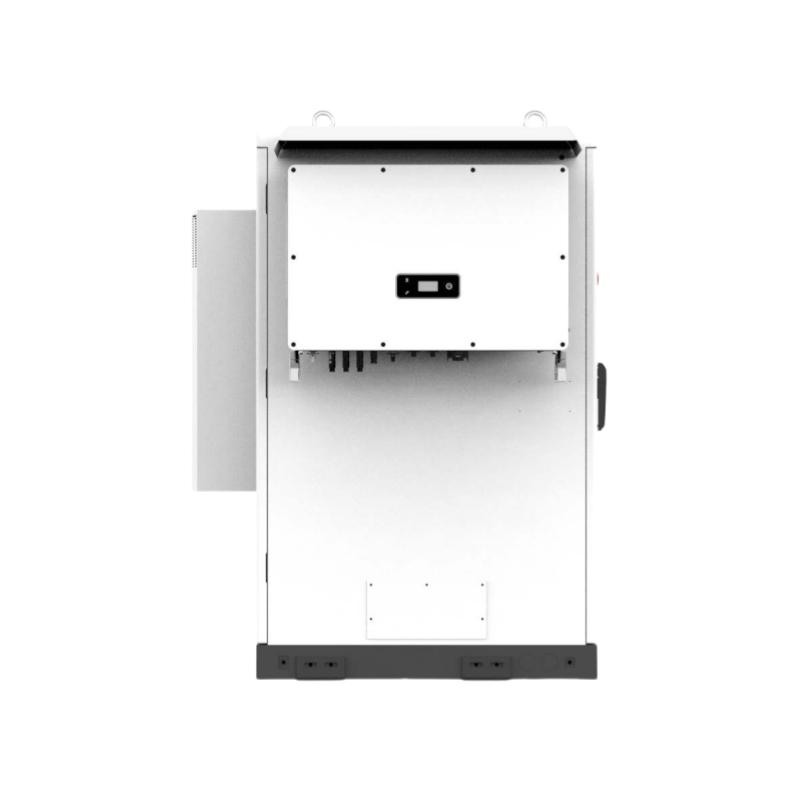

Energy Cube 50kW-100kWh C&i ESS integrates photovoltaic inverters and a 100 kWh energy storage system. It includes battery cells, Battery Management System (BMS), photovoltaic inverters, fire protection system, distribution system, thermal management system, and energy management system. This achieves an integrated "PV + Energy Storage" solution. The cabinet system adopts a modular design, allowing flexible configurations for photovoltaic, batteries, and loads, meeting various user-side applications.
Item | Specifications |
PV Parameter | |
Maximum Input Power | 75kW |
Maximum Dc Input Voltage | 1000V |
Mppt Operating Voltage Range | 200-850V |
Maximum Input Current | 30A×4 |
Rated Output Power | 50kW |
Maximum Conversion Efficiency | 98.8% |
System Parameter | |
Operating Environment | -20℃～50℃（Power derating 45℃+） |
Size (W*D*H mm) | 1130*1000*1600 |
Weight | About 1.4t |
Class Of Protection | IP54 |
Allowable Relative Humidity | 0-95% |
Allowable Altitude | ≤2000m（Power derating 2000m + ） |
Certification Standard | IEC62619、EN62477-1、IEC 63056 |
Item | Specifications |
DC Parameter | |
Battery Type | LFP |
Combination Mode | 1P112S |
Rated Capacity | 280Ah |
Rated Energy | 100kWh |
Rated Voltage | 358.4V |
Rated Power | 50kW |
Operating Voltage Range | 280V～408.8V |
Charge/Discharge Current | 100A/100A |
Cooling Mode | Air Cooling |
Cycle Number | 6000 |
Fire Protection System | Aerosol Extinguishing |
Detector Type | Temperature / Smoke Sensor / Water Leak |
AC Parameter | |
Rated Output Power | 50kW |
Rated Voltage | 3L/N/PE; 220/380V;230/400V;240/415V |
Grid Frequency | 50/60Hz |
Maximum Output Current | 83A |
Power Factor | 0.8 Lead... 0.8 lag |
During periods of low electricity prices, use the grid to charge the devices. During periods of high electricity prices, discharge the batteries to power the load.
It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.
Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.
Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.
