Product Details:
|

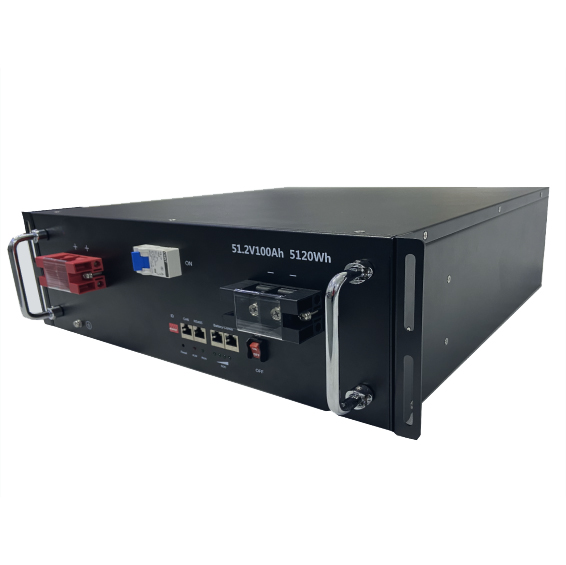

| Nominal Capacity: | 100Ah | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Internal Impedence: | Operating Votage: | ||
| Dimension: | Battery Weight: |
Advantage:
l Can be customized.
l High performance LFP single battery, long life, safety and wide temperature range.
l High energy density, small volume, light weight and no pollution.
l Single-core container, flame retardant wire, copper connecting strip packaging, stable and safe.
l High efficiency and fast charging thulium.
l Built-in BMS protects voltage, current and temperature all the time.
No. | Item | Specification |
1 | Rated Voltage | 51.2V |
2 | Rated Capacity | 100Ah |
3 | Rated Energy | 5120Wh |
4 | Battery Type | LiFePO4 |
5 | Battery to Inverter | RS485/CAN |
6 | Charging Voltage | 56.0V-57.0V |
7 | Discharge Voltage | 43.2V |
8 | Max. Constant Current | 100A |
9 | Max. Continuous Discharge | 100A |
10 | Charging Range | 0°C~45°C |
11 | Discharge Range | -20°C~-55°C |
12 | Storage Temperature Range | -20°C~-45°C |
13 | Discharge Voltage | 43.2V |
14 | Cycle Life (80%) | 6000 cycles, 80%DOD, 25°C |
15 | Certificate | CE/UL/ICE/UN38.3/MSDS/IOS9001 |
16 | Dimension | 442*470*155mm |
17 | Weight | 46.0kg |
