Product Details:
|
| Nominal Capacity: | 100Ah | Nominal Voltage: | 48V/51.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | 438*130*450mm | Battery Weight: | 50kg |
Features：
Small size/light weight
· 48100 LFP product: 3U modular design, light weight and small size to maximize space utilization
High level of safety/long service life
· A system composed of LFP batteries, with high safety and long service life, 0.5C charge and discharge at 25℃, 100% DOD, and number of cycles ≥3,500
Flexible system configuration
· Configuration of multiple packs in parallel based on the power backup time of the system, with 16 packs in parallel at most, facilitating multiple application scenarios
Parameters：
Basic Parameters | |
Cell chemistry | LFP |
Nominal capacity | 100ah |
Nominal Voltage | 51.2V |
Configuration | 1P16S |
Nominal energy | 5.12kwh |
Operating voltage range | 44.8V~57.6V |
Operating temperature range | Charge: 0℃～55℃ Discharge: -20℃～55℃ |
Weight | Around 50kg |
Dimensions (W*H*D) | 438*130*450mm |

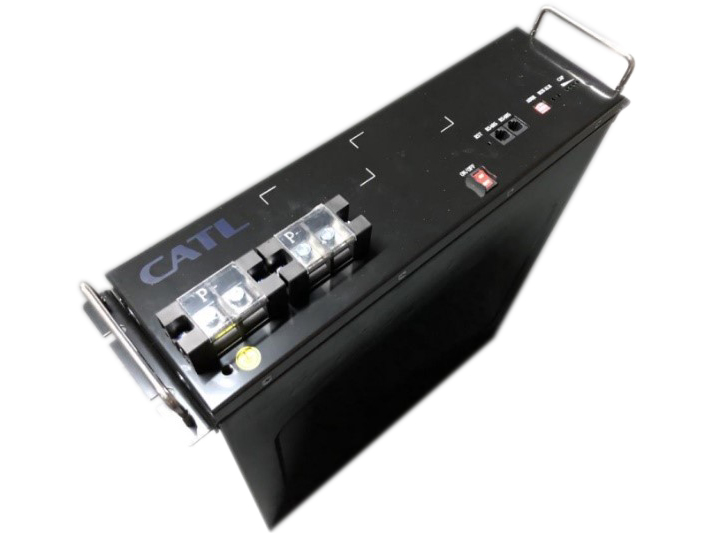

CATL LiFePO4 Battery Module for Telecom：
Advantages: Integrated design, small size, light weight, unattended mode, easy-to-use cabinet with standardized installation method, energy saving and environmentally friendly design, etc.
Applications: Widely used as a backup power supply in communication fields such as network access devices, remote switching offices, mobile communication equipment, transmission equipment, satellite ground stations and microwave communication equipment
