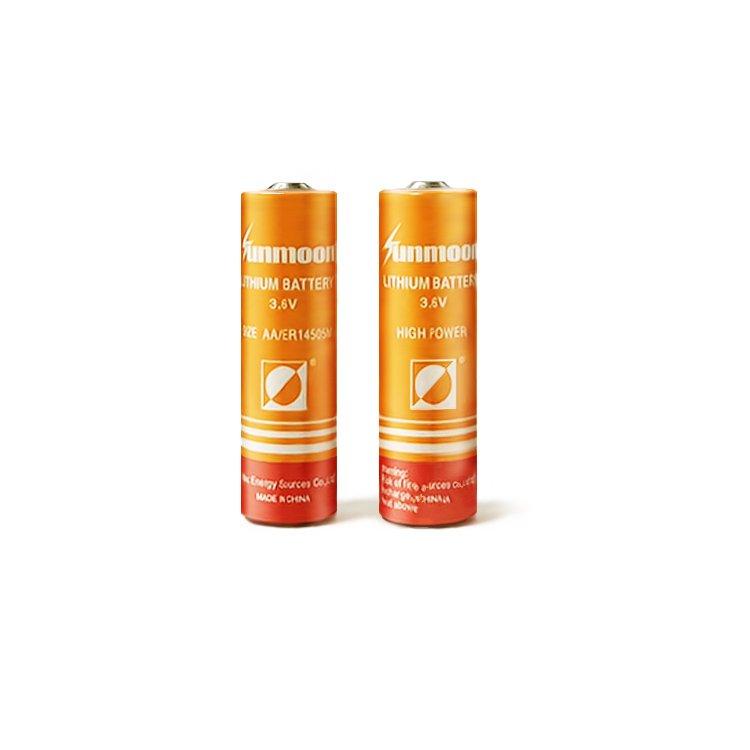

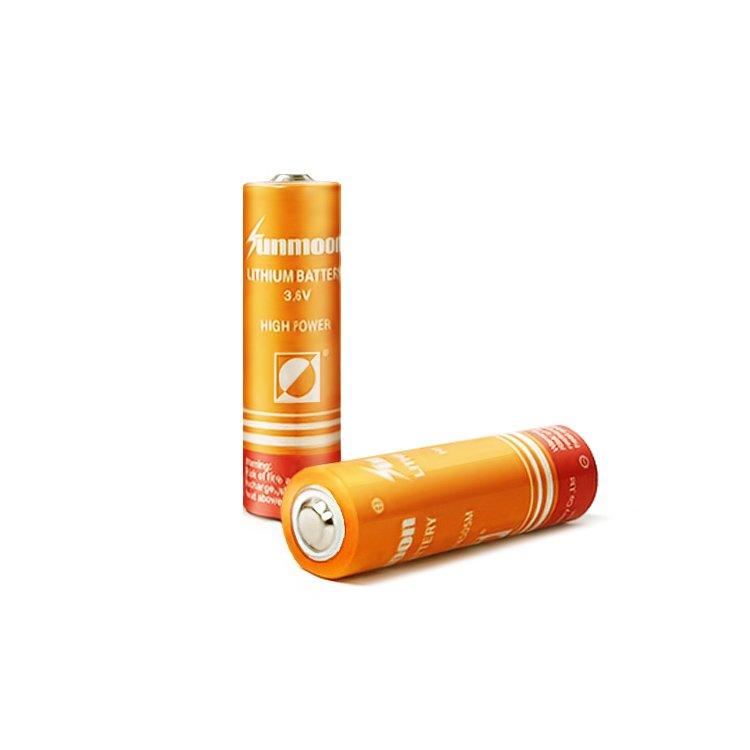

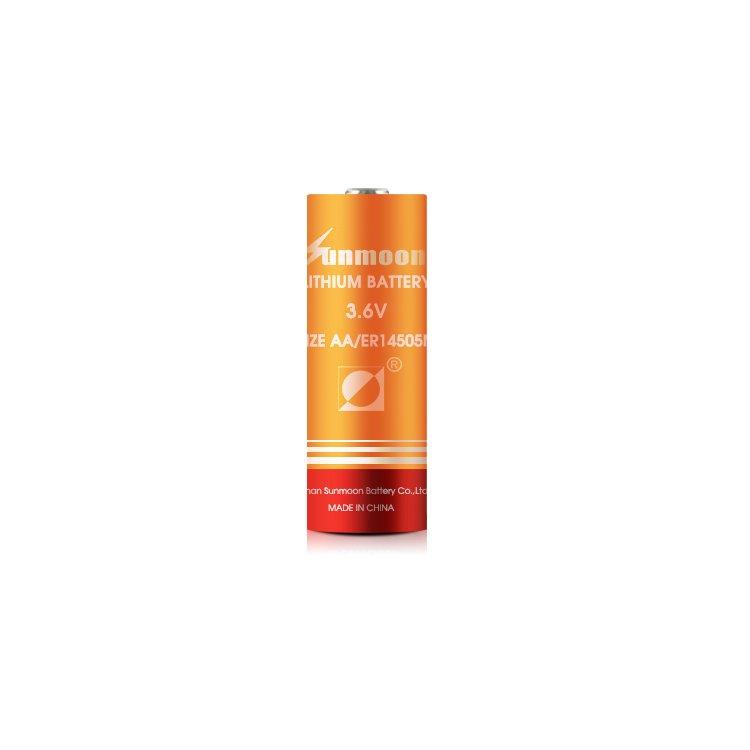

3.6V 2100mah ER14505M lithium thionyl chloride socl2 battery

Contact Now

Product Details:

Place of Origin:	China
Brand Name:
Certification:
Model Number:	ER14505M

Payment & Shipping Terms:

Retail Price:
Wholesale Price:	Negotiable
Packaging Details:	cartons or plywoods
Payment Terms:	T/T

Contact Now

Nominal Capacity:	2100mah	Nominal Voltage:	3.6V
Internal Impedence:		Operating Votage:
Dimension:	14.5*50.5mm	Battery Weight:	20g

Product Description

Product Characteristics

High Energy Density: Over 430wh/kg
Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V
Wide Operating Temperature Range: -55°C+85°C
Long Storage Life: Over 10 years[Under normal room Temperature]
Operation Characteristic: Suitable for high power continuous dischargeand pulse discharge

Electrical Specification

Nominal Capacity[3mA~2V]	2.1Ah
Nominal Voltage	3.6V
Maximum Continuous Current	300mA
Maximum Pulse Current	1000mA
Weight	20g
Operating Temperature	-55℃ ~ +85℃

Main Applications

loT / Alarms and Security Systems / Utility Meters/AMR&AMI / Automotive Telematics / Storage and Tracking Devices / Military Equipment / R&D Instrument / Sensor / Oil Drilling

Typical Discharge Characteristics and dimensions

ER14505M Discharge Curve Diagram and dimensions
