DUBAI — At Middle East Energy (MEE) Dubai, SVOLT Energy introduced a 6.29MWh utility-scale battery energy storage system and a 285kWh commercial and industrial all-in-one unit, presenting them as “energy armor” for the Middle East’s extreme operating environment.
The region is accelerating its energy transition under frameworks such as Saudi Vision 2030 and the UAE’s energy strategy, but its natural conditions pose what industry observers describe as an extreme survival test for storage equipment. Many large projects are planned in desert interiors where summer surface temperatures can exceed 70°C. What the market needs, according to SVOLT, is not a laboratory-spec overachiever but a “desert special forces” system capable of withstanding high temperatures and sandstorms.
At MEE Dubai, the company’s answer was a dual launch: the 6.29MWh utility-scale system and the 285kWh C&I all-in-one machine. Both are designed to address the Middle East’s core demands for high-temperature adaptability and high reliability.

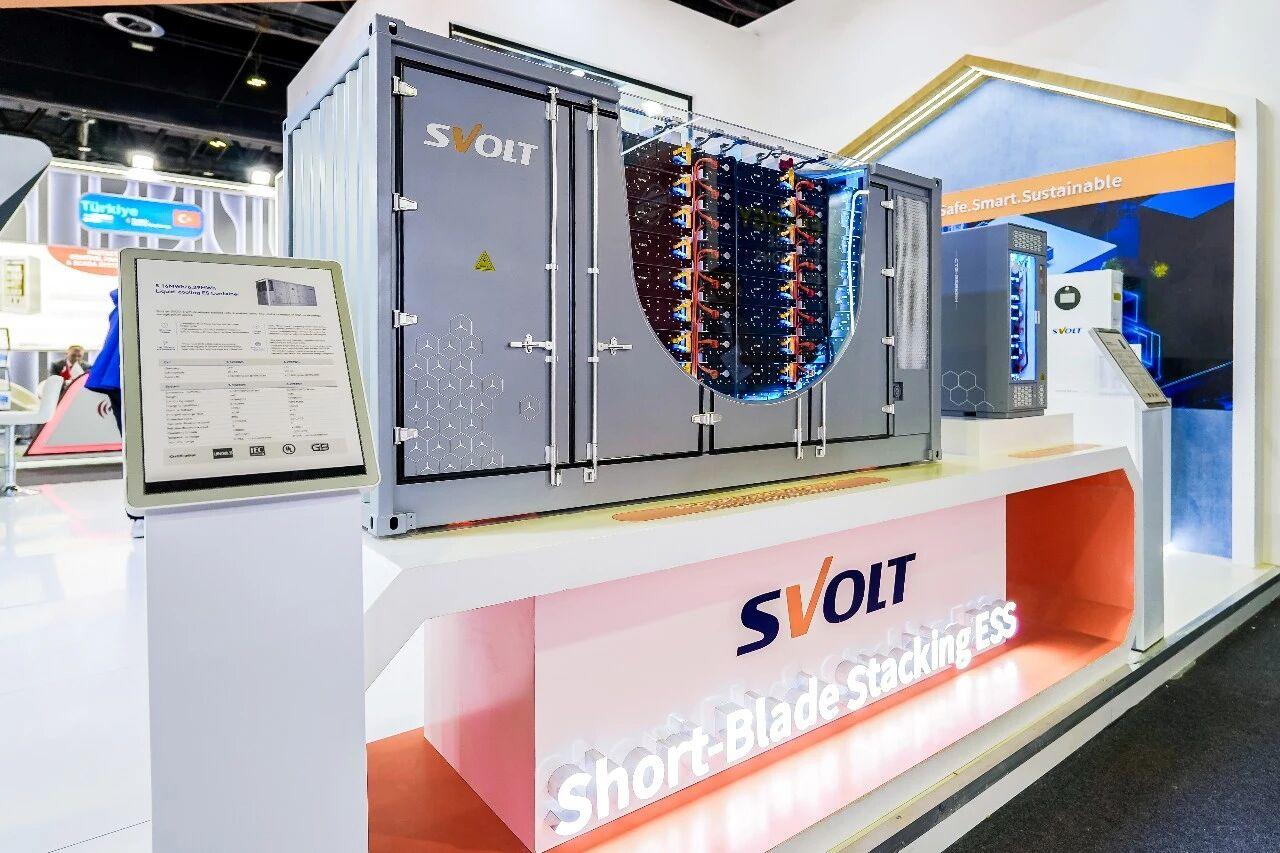

Utility-scale “heavy troop”: 6.29MWh three-cabin independent system
For grid-side utility storage that must operate safely over long periods, the 6.29MWh system targets three key pain points under extreme Middle East conditions.
First is safety architecture. The battery cabin, electrical cabin and water-cooling cabin are independently arranged. Physical thermal insulation creates fire-electric separation, confining thermal runaway to a single zone and structurally preventing cross-cabin propagation.
Second is thermal management. L-shaped upper-and-lower dual-side liquid cooling reduces the maximum cell temperature difference from 15°C to 7°C—a reduction of more than 50%. Cycle life exceeds 10,000 cycles at 70% SOH, while full-lifecycle revenue rises by about 10%. In 55°C desert heat, SVOLT says this is critical to protecting returns.
Third is space efficiency. Based on short-blade cells, the CTR module-less design cuts component count by 36%. An AB mirror layout allows back-to-back and side-by-side deployment, reducing footprint by 30% and directly lowering infrastructure and land costs in desert areas.
C&I “special forces”: 285kWh all-in-one
Unlike utility-scale storage, C&I storage faces more complex electricity price fluctuations and revenue models. The 285kWh all-in-one unit is designed to make every kilowatt-hour of investment calculable and predictable.
On hardware, the CTR module-less design makes the equipment lighter and more compact, with 36% fewer parts and 30% higher structural strength. Dual-side liquid cooling cuts cell temperature difference by 50% and extends cycle life by 10%. The combination of weight reduction and temperature control is intended to protect owners’ revenue baseline over a decade.
Above the hardware, AI-BMS gives the system a real “accounting” capability. It monitors electricity prices and load fluctuations in real time and autonomously decides the best charge and discharge windows. In peak-valley arbitrage and demand control scenarios, it maintains optimal strategies and improves O&M efficiency by 60%, turning volatile electricity prices into calculable, certain returns.
From hardware to software, the system also carries the credentials needed for the Middle East. It meets UL1973, UL9540A and IEC62619 certifications, operates stably from -30°C to 55°C, offers IP55 protection, and provides optional C3-C5 anti-corrosion grades. From humid coastal areas to desert interiors, one unit is designed to adapt to the full range of scenarios.
From desert power plants to industrial parks, SVOLT is building a “desert special forces” matrix around the 6.29MWh utility-scale system and 285kWh C&I all-in-one unit. Faced with extreme heat and sand, this energy equipment forged with hardcore technology is offering a high-reliability answer from China for the Middle East’s energy transition.
