Product Details:
|
| Nominal Capacity: | 3800mah | Nominal Voltage: | 3.2V |
|---|---|---|---|
| Internal Impedence: | / | Operating Votage: | / |
| Dimension: | / | Battery Weight: | About 88g |
This 26650 lithium ion phosphate battery verified by DOE optimization experiment, strict selection and supervison of incoming material, strict manufacturing process controlled, to ensure the battery cell high consistency on static state of initial matching, charge-discharge dynamic process and attenuation performance of the long-term cycling.

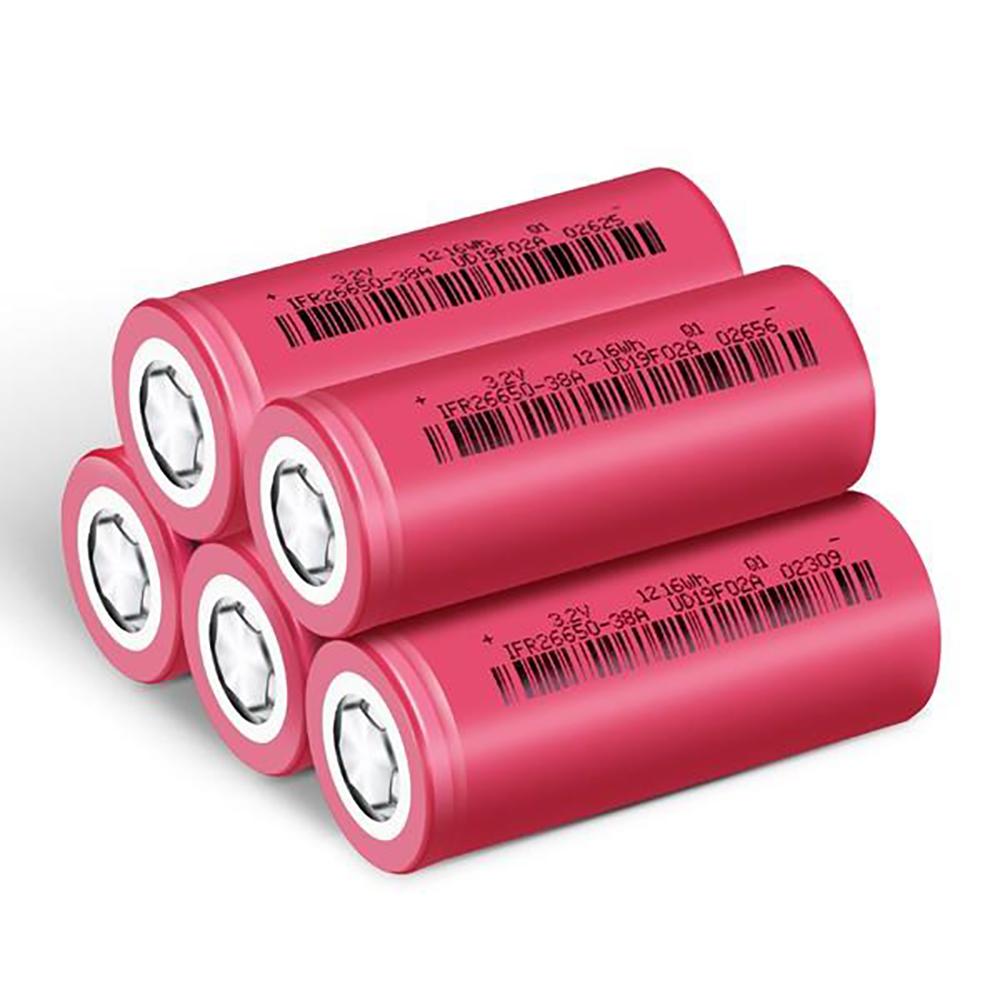

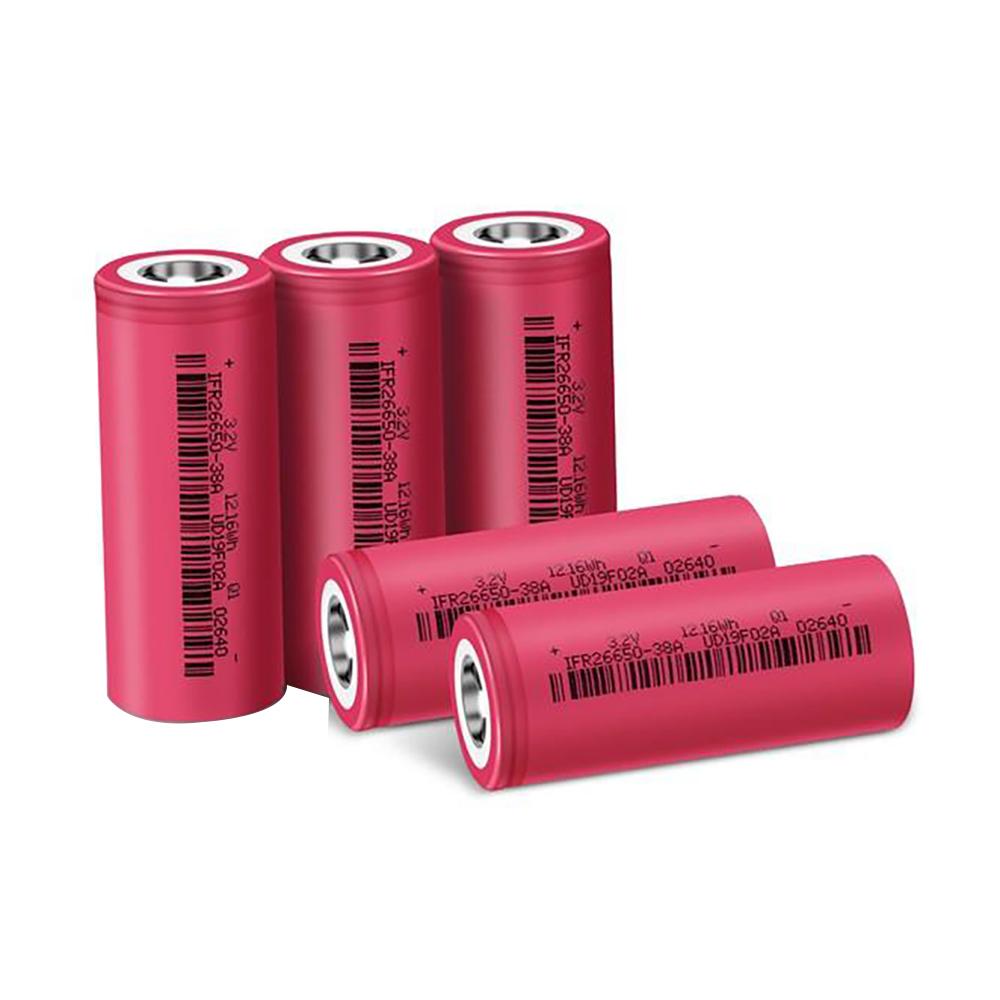

IFR26650-3800mAh, Lithium Iron Phosphate LFP chemical system

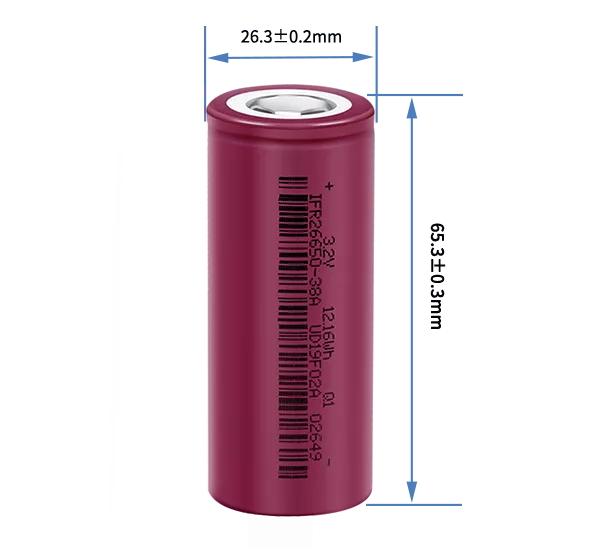

Diameter: 26.3±0.2mm, Height: 65.2±0.3mm
Lithium lead acid replacement batteries, Communication base stations, E- bicycle, E-motorcycle, golf cart, trolly golf cart, medical instruction.
Select first class raw material suppliers to ensure consistency and stability of cells. Leading manufacturer of high energy-density 26650 battery. Strict production control, whole process MES tracking system, to ensure high consistency of between different cells batch, attenuation and dynamic status. High safety design: wet process PE separator which will close pores automatically to cut off current under high temperature; ceramic coating almost no heat shrink under high temperature to prevent short circuit of cathode and anode; CID precise pressure release design to ensure cells safety.
Parameter：
Parameter | Product specification |
Typical Capacity | 3800mAh(0.5C) |
Nominal Voltage | 3.2V |
Energy Density | 138Wh/kg |
Cell AC Impedance (1KH) | ≤20mΩ |
Cell Weight (g) | About 88g |
Operation Voltage | 2.0~3.65V |
Standard Charge Model | Cell is charged with constant current of 1C to 3.65 V, and then converted to 3.65V constant voltage charging until the charging current is less than 0.02C (76mA). |
Standard Charge Current | 1900mA |
Max. Charge Current | 3800mA |
Standard Discharge Current | 1900mA |
Max. Discharge Current (Continuous) | 5000mA |
Max. Discharge Current (Long Pulse) | 11400mA, 15s |
Max. Discharge Current (Short Pulse) | 19000mA, 10s |
100%DOD cycle life | ≥3000Cycles (80%DOD) |
Charge Operating Temperature | 0℃~45℃(Environment temperature） |
Discharge Operating Temperature | -20℃~60℃(Environment temperature |
Storage Temperature | -20℃~45℃ |
